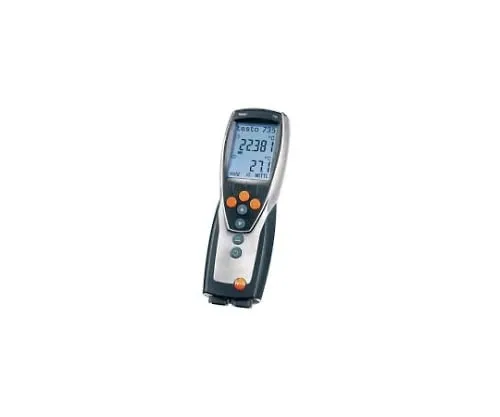

61-0104-17-56 Professional Class Thermometer testo 735 -2 English Calibration Certificate 05637352
Product Description
Product Model: 61-0104-17-56Product Brand: Testo K. K. […]
Contact Us
Product Details
Product Model: 61-0104-17-56
Product Brand: Testo K. K.
Features
- It is possible to connect 3 temperature sensors (2 thermocouples, 1 Pt 100) at the same time.
- Maximum System Accuracy: ±0.05°C (High Precision Digital Probe Used) - High accuracy of ±0.05°C is realized since the accuracy of the main unit is not affected!
- Up to three temperature probes can be connected simultaneously. (Thermocouple socket x 2, Pt100 socket x 1).
- Displays temperature difference, maximum value, minimum value, and average value.
- Acoustic alarm.
- Print out data on-site with a desktop infrared printer (optional).
- Easy-to-read backlit display.
- Protection Grade: IP65.
- Memory capacity: Approximately 10,000 data.
- With the included special software, you can manage and analyze approximately 10,000 minutes of data.
- Measure data is assigned to each measurement location and saved.
- User Profile feature makes operation more efficient
Spec
- Measuring range
- Body: -200 to + 1760 degrees C
- Pt 100 sensor: -200 to + 800 deg C
- Pt 100 sensor (high-precision digital probe): -80 to + 300 degrees C
- K thermocouple sensor: -200 to + 1,370 degrees C
- T thermocouple sensor: -200 to + 400 degrees C
- J Thermocouple Sensor: -200 to + 1,000 degrees C
- S thermocouple sensor: 0 to + 1,760 degrees C
- Resolution
- Pt 100 sensor: 0.05 deg.
- Pt 100 sensor (high-precision digital probe): 0.001 degrees C < -80 to + 199.999 degrees C >
- K/T/J thermocouple sensor: 0.1 degrees C
- S thermocouple sensor: 1 degree C
- Accuracy
- Pt 100 sensor: +/- 0.2 degrees C < -100 to + 199.9 degrees C >
- Pt 100 sensor (high-precision digital probe): +/- 0.05 degrees C < + 0.01 to + 100 degrees C >
- K/T/J thermocouple sensor: +/- 0.3 degrees C < -60 to + 60 degrees C >
- S thermocouple sensor: +/- 1 degree C + (0.1% of measured value)
- Memory capacity: About 10,000 data minutes.
- Battery type: 3 AA batteries (thermocouple sensor connection time: about 300 hours) or AC adapter
- Housing
- Pt 100 sensor: ABS resin
- Pt 100 sensor (high-precision digital probe): TPE
- K/T thermocouple sensor: metal
- Battery life
- Pt 100 sensor: about 250 hours
- Pt 100 sensor (high-precision digital probe): Approximately 60 hours
- K/T thermocouple sensor: approximately 300 hours
- Dimensions: 220 x 74 x 46 mm
- Weight: 428 g
- Measurement frequency: 2 times/second
- Protection rating: IP 65
- Specifications: Body
- *The body does not come with a sensor.
- Calibration points are 2 points, the lowest and highest temperature of the body and K thermocouple sensor (-200 to + 1370 degrees Celsius). (There is no body calibration for Pt, T, J and S heat sensors.)
