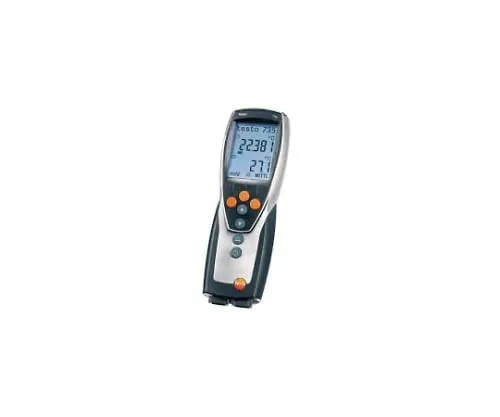

61-0104-17-20 Professional Class Thermometer Testo735 -2 With Calibration Certificate 0563 7352
Product Description
Product Model: 61-0104-17-20Product Brand: Testo K. K. […]
Contact Us
Product Details
Product Model: 61-0104-17-20
Product Brand: Testo K. K.
Features
- It is possible to connect 3 temperature sensors (2 thermocouples and 1 Pt 100) at the same time.
- Maximum system accuracy: +/- 0.05 degrees Celsius (with high-precision digital probe) - Not affected by body accuracy, achieving a high accuracy of +/- 0.05 degrees Celsius!
- Up to three temperature probes can be connected simultaneously. (2 thermocouple sockets, 1 Pt100 socket).
- Temperature difference, maximum, minimum and average values are displayed.
- Acoustic alarm.
- A tabletop infrared printer (optional) prints out data on-site.
- An easy-to-read backlit display.
- Protection rating: IP65.
- Memory capacity: About 10,000 data minutes.
- With the included dedicated software, you can manage and analyze approximately 10,000 minutes of data.
- Store measurement data allocated to each measurement location.
- The ***r profile feature allows you to operate more efficiently
Spec
- Measurement range
- *Body: 200 to + 1760 ℃
- *Pt 100 sensor: 200 to + 800 ℃
- *Pt 100 sensor (high precision digital probe): 80 - + 300 ℃
- *K class thermocouple sensor: 200 to + 1,370 ℃
- *T class thermocouple sensor: 200 to + 400 ℃
- *J class thermocouple sensor: 200 to + 1,000 ℃
- *S thermocouple sensor: 0 to + 1,760 ℃
- Resolution
- *Pt 100 sensor: 0.05 ℃
- *Pt 100 sensor (high precision digital probe): 0.001 ℃ <-80 to + 199.999 ℃>
- *K/T/J class thermocouple Sensor: 0.1 ℃
- *S thermocouple sensor: 1 ℃
- Accuracy
- *Pt 100 sensor: ±0.2 ℃ <-100 to + 199.9 ℃>
- *Pt 100 sensor (high precision digital probe): ±0.05 ℃ <+ 0.01 to + 100 ℃>
- *K/T/J class thermocouple Sensor: ±0.3 ℃ <-60 to + 60 ℃>
- *S thermocouple sensor: ±1 ℃ + (0.1% of the measured value)
- Main memory capacity: about 10,000 data minutes.
- Battery Type: 3 AA size battery (Thermocouple sensor connection time: about 300 hours) or AC Adapter
- Housing
- *Pt 100 Sensor: ABS Plastic
- *Pt 100 sensor (high precision digital probe): TPE
- *K/T class thermocouple Sensor: Metal
- battery life
- *Pt 100 sensor: about 250 hours
- *Pt 100 sensor (high precision digital probe): about 60 hours
- *K/T class thermocouple Sensor: about 300 hours
- External dimensions : 220 x 74 x 46mm
- Weight: 428g
- Measurement frequency: 2 times per second
- Protected grade: IP 65
- Model number: 735 -2
- Specification: Main unit
- *There is no sensor attached to the body.
- Accessories: Calibration certificates
- *Products with calibration certificate is a service where equipment is calibrated and calibration certificate is issued at the time of shipment.
