Features

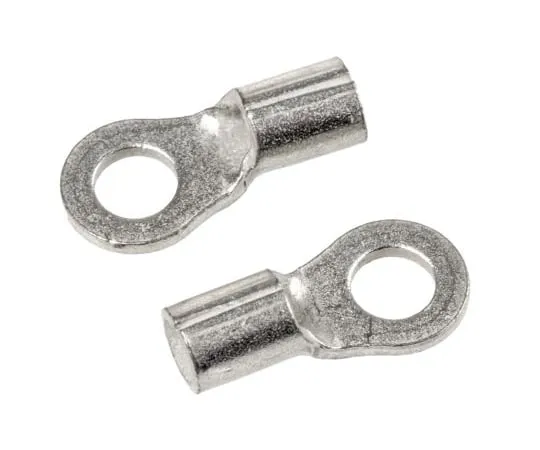

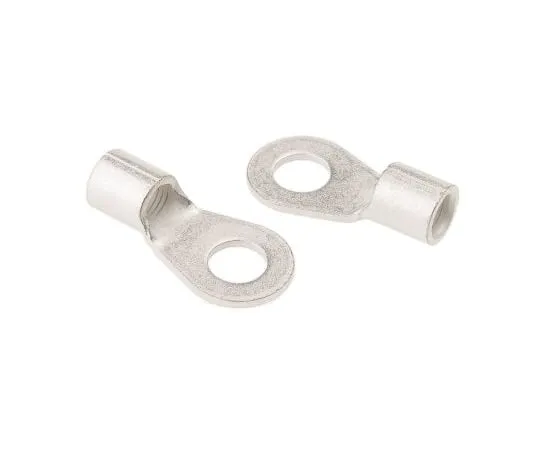

• TE Connectivity SOLISTRAND Ring Terminal
• The SOLISTRAND ring crimp terminal is designed for the termination of conductors with irregular shapes from single or stranded wires.
• The SOLISTRAND ring terminal has a robust design and maintains excellent performance characteristics in extremely harsh environments.
• This design also ext***s the service life of the SOLISTRAND ring terminal.
• The SOLISTRAND ring terminals are made of high-purity, high-conductivity copper to optimize electrical performance and are electrotin-plated to enhance corrosion resistance.
• The closed barrel has a brazing seam that enhances the strength of the metal and is resistant to harsh industrial environments.
• The inner surface of the barrel is serrated to maximize the strength of extension and the area of electrical contact after crimping.
• The resulting "W" crimp enables you to *** shorter, more cost-effective barrels.
• The opening in the barrel of the SOLISTRAND ring terminal is bell-shaped and allows easy insertion of wires, which reduces installation time.
• To optimize the combination of mechanical strength and conductivity, the SOLISTRAND ring terminals are installed using a special SOLISTRAND crimping tool sold separately.
• Features and benefits: Optimize electrical performanceHigh purity, high conductivityCopper corrosion resistanceElectrotin platingRobust design for *** in harsh environmentsBrazing seams for increased barrel strengthBarrel with dimple/sawtooth finish for increased electrical performance and extension strengthBarrel with bell-shaped mouth for quick and easy wire insertionUp to 170°C rating for all standard applications
• Applications: SOLISTRAND Crimp ring terminals are suitable for a wide range of applications including material handling equipment, motors, heavy equipment, pad and pole mounting transformers, switchgear, communications, appliances, panel boxes, power supplies, instrumentation and control.
