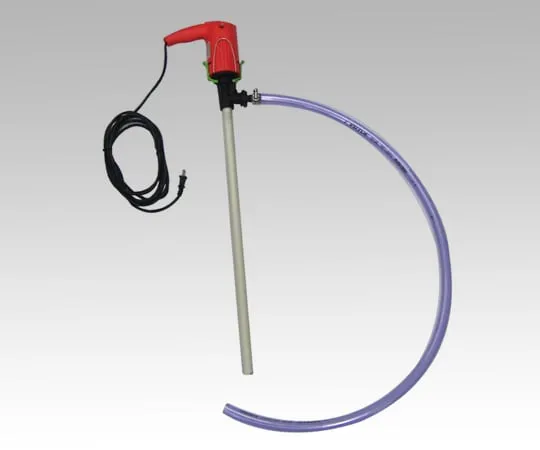

1-6428-01 Chemical Portable Pump CB-235J
model:
1-6428-01
category:
laboratoryinstruments
Product Description
Product Model: 1-6428-01 Features Lightweight and easy […]
Contact Us
Product Details
Product Model: 1-6428-01
Features
- Lightweight and easy to handle.
- The flow rate can be changed over with the two-stage transmission switch.
- Uses a unique sealless mechanism for perfect shaft sealing.
- RoHS compatible.
Spec
- Model number: CB-235J
- Power cord length: 4.4m
- Material: Impeller/ETFE (fluororesin) Outer tube/PP (Polypropylene), Shaft/hastelloy C, Packing/PE (polyethylene)
- Plug shape: 2P
- Maximum discharge: 30L/min
- Maximum head: 5m
- Maximum operating temperature: -45℃
- Maximum usable viscosity: 200mPa・s
- Suction port outer diameter: φ25mm
- Discharge port diameter: φ19mm (hose nipple)
- Drive source: Single phase 100V 230W
- Length: 925mm
- Weight: 1.8kg
- Accessories: φ19 blade hose 1.5m x 1
