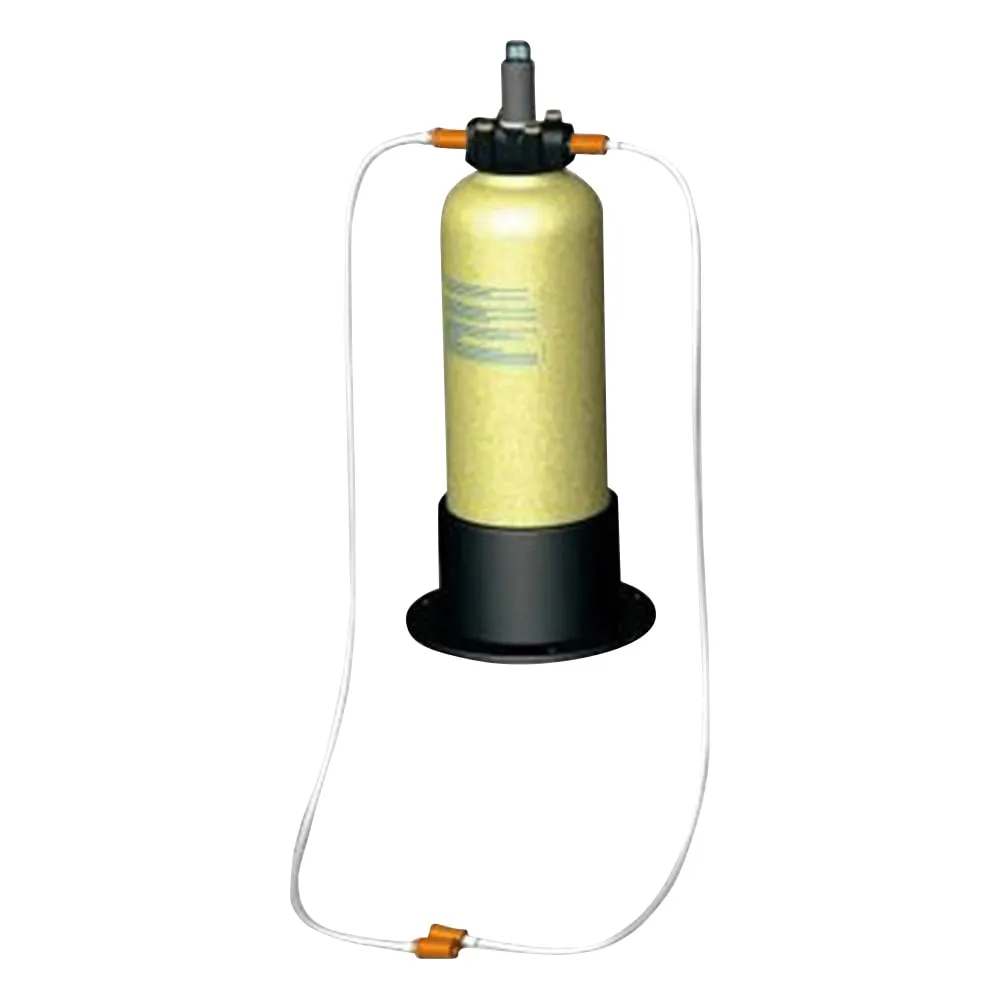

1-3134-04 Cartridge Water Deionizer φ260 x 260mm KB-07 Type
Product Description
Product Model: 1-3134-04Product Brand: Kurita Water Ind […]
Contact Us
Product Details
Product Model: 1-3134-04
Product Brand: Kurita Water Industries Ltd.
Features
- Simple and Easy Non-Regenerative Cartridge Pure Water Supply System • Economical and Convenient Ion Exchange Resin Supply System • When purity decreases, the water quality monitor indicates when to replace the ion exchange resin (3-color LED). It is easier to monitor water quality by displaying it in color.
- External battery system and AC outlet power system can be selected.
Spec
- Size (mm): φ260 x 620
- Standard flow rate: 20 - 150L/h
- Feedwater quality: 20ms/m or lower (200μs/cm or lower)
- Volume of collecting water, approx.: 1350L/cycle
- Water quality for collection: 0.1ms/m or lower (1μs/cm or lower)
- Ion exchange resin (CR-M120): 7.5L
- Maximum operating pressure: Approx. 0.34MPa (3.5kgf/cm2)
- Maximum operating temperature: 30℃
- Pure meter (DX type only): Digital display type 0.0 - 15FM, cm, 100VAC 5VA, LED 3 color lighting, red color <1.0MΩ・cm, Orange color <5.0MΩ・cm, Green color> 5.0MΩ・cm
- Water quality monitor (KB type only): LED 3 colors, green color ≧ 3MΩ・cm to orange color to 1MΩ・cm ≧ orange color, red color
- Connection hose inner diameter: φ12mm
- *Resin regeneration is cylinder exchange.
- Accessories: Ion exchange resin, pure meter (water quality meter), hose 2m x 2
- Model number: KB-07
