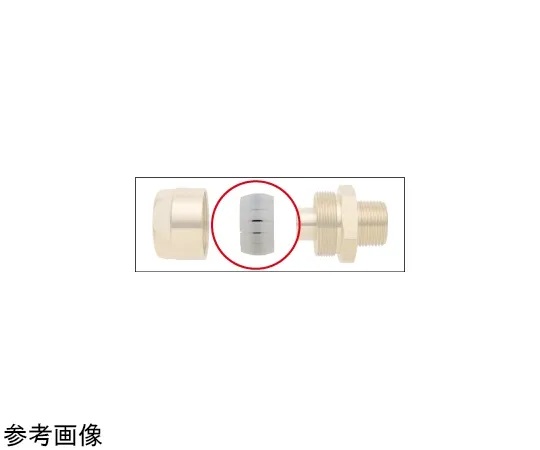

67-4861-58 Replacement Sleeve Set TC3-12-RSS
Product Description
Product Model: 67-4861-58Product Brand: TOYOX CO., LTD. […]
Contact Us
Product Details
Product Model: 67-4861-58
Product Brand: TOYOX CO., LTD.
Spec
- Sleeve Set Part Number: TC3-12-RSS
- Applicable Toyota Connector Part Number: TC3-B12-R3/8, TC3-B12-R1/2
- Material: Sleeve/Polyacetal Resin
- Rubber Packing/NBR
- [Installation]
- ① Attach the nipple to the machine side beforehand.
- ② Pass the bag nut through the hose and pass the sleeve with packing.
- *Check that the packing fits in the groove inside the sleeve.
- ③ Insert the hose deep into the nipple and push the sleeve in.
- ④ Tighten the cap nut until there is no clearance.
- Mounting tool
- Use "monkey wrench" or "motor wrench" for tightening. Do not *** a pipe wrench. The nut will be damaged.
- Securities Code: 303-0002272
