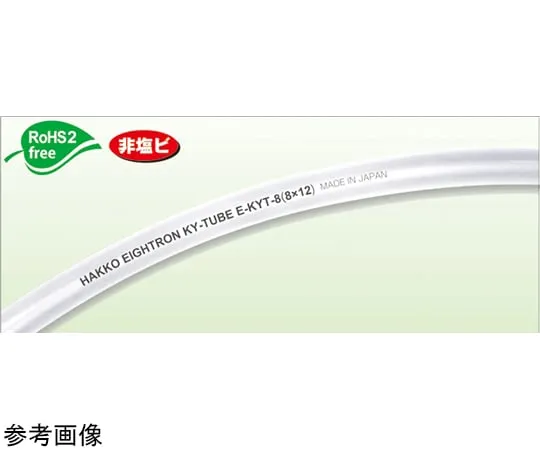

67-4815-17 KY Tube 100 m Roll E-KYT-6X9
Product Description
Product Model: 67-4815-17Product Brand: HAKKO Features […]
Contact Us
Product Details
Product Model: 67-4815-17
Product Brand: HAKKO
Features
- Flexibility ... Outstanding flexibility among non-PVC tubes for improved workability
- Non-PVC ... Eco-fri***ly tube made of olefinic resin and styrene elastomer.
- Environmental Measures ... Reduce the generation of dioxin and other harmful gases during incineration.
- Plasticizer free ... Oil free tube containing no plasticizer which is a factor of eluted material
- Low elution, low odor ... Less eluted substances than PVC, making it suitable for food, beverage and cosmetic applications.
- Chemical resistance ... Olefin-based resin is ***d in the inner layer to provide excellent chemical resistance.
- Easy to cut ... Easy to cut beca*** of the length printing on the tube at 1-meter intervals.
- Transparency ... fluid visible natural color
- Green procurement ...RoHS2 prohibited 10 substances not ***d (directive 2011/65/EU:: RoHS2) (as of June 2023)
- Exclusive fittings ... In combination with exclusive fittings, accidents due to mis-selection of tube fittings can be prevented.
- Food Sanitation ... Conforms to the Food Sanitation Act, Food Standards, Additives, etc. (Ministry of Health and Welfare Notification No. 370 of 1959)
- alcohol resistance
Spec
- Constant length (m): 100
- Inner Diameter x Outer Diameter (mm): 6 x 9
- Working pressure at 20°C (MPa): 0~0.2
- Allowable b*** radius at 20°C (mm): 400
- [Application]
- Transfer piping for food, beverage, and brewing
- Transport piping for alcohol, cosmetics, perfumes, etc.
- Piping for transfer of high purity chemicals such as fine chemicals
- Chemical piping for acid, alkali, etc.
- As a countermeasure against the adverse effect of plasticizer of PVC tube on fluid
- As a countermeasure against odors in silicon tubes
- Drugs, inks, food, beverages, perfumes, cosmetics, liquor, oil, water, powders, air
- Securities Code: 102-4810602
