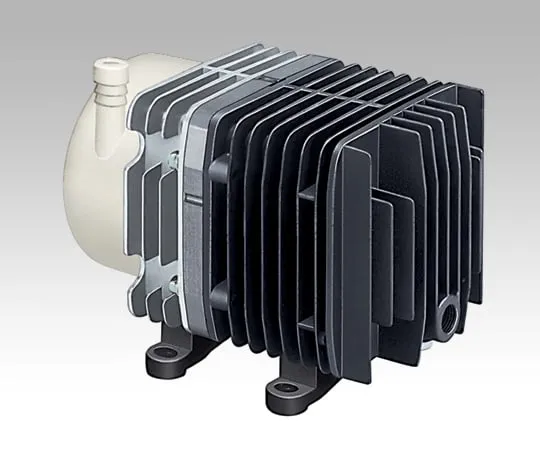

1-3476-01 Linear Compressor 100 VAC Drive AC0610A
Product Description
Product Model: 1-3476-01Product Brand: NITTO KOHKI CO., […]
Contact Us
Product Details
Product Model: 1-3476-01
Product Brand: NITTO KOHKI CO., LTD.
Features
- Since the motor and the compression part are integrated, it is small and light, and easy to install equipment.
- Reduces vibration and noise.
- Since it is oilless, it can supply clean air.
Spec
- Model number: AC-0610A
- Discharge air volume (L/min): 8
- Size (mm): 188 x 118 x 138
- Rated Pressure: 0.1MPa
- Highest pressure: 0.15MPa
- Noise level: 55dB
- Discharge port diameter: PT1/4
- Power supply: AC100V 50/60Hz (without plug, approx. 200mm lead wire only) 60/52W
- Mounting portion dimensions: 68 x 84mm
- Weight: 3.2kg
- Coil Insulation class: Equivalent to Class E
