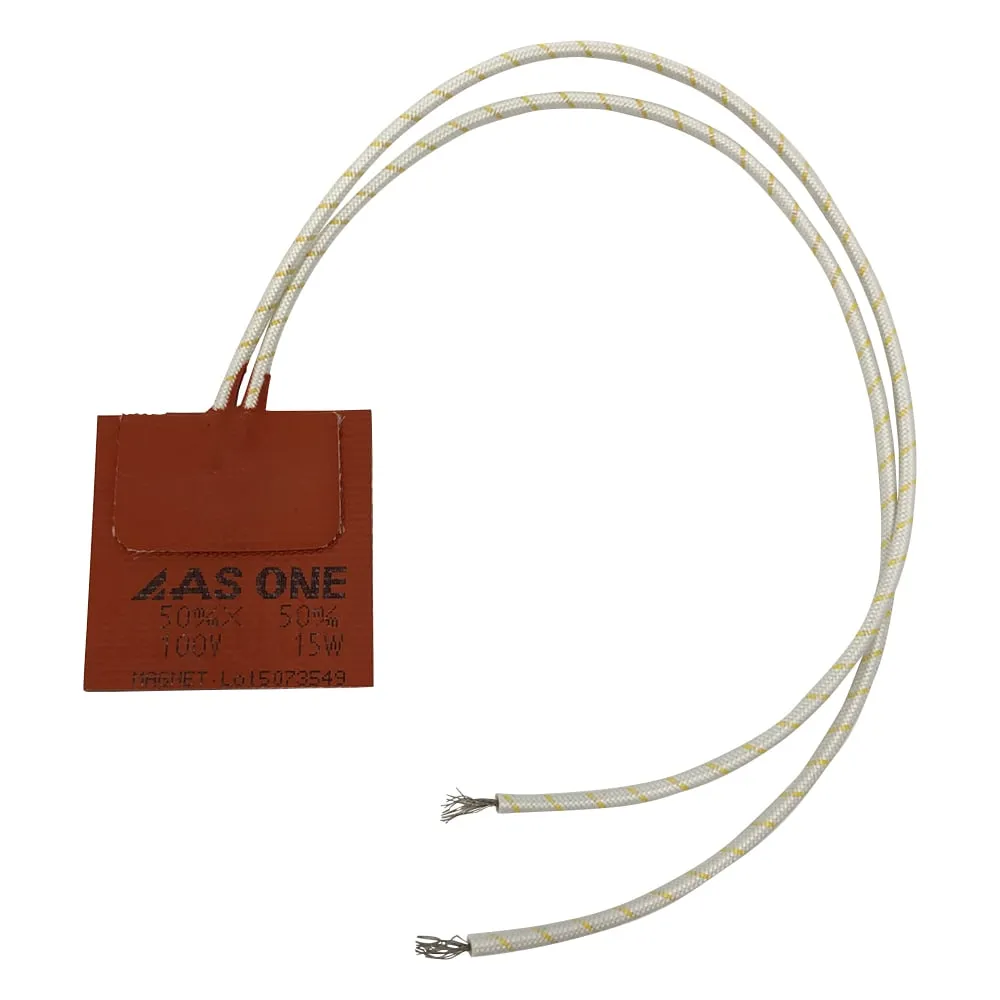

1-1173-01 Silicone Rubber Heater MG 50 x 50 -
model:
1-1173-01
category:
laboratoryinstruments
Product Description
Product Model: 1-1173-01 Features Attach and detach by […]
Contact Us
Product Details
Product Model: 1-1173-01
Features
- Attach and detach by the force of a magnet.
- Since one side of the heater is magnetized, it can be easily attached to and detached from the metal surface.
- A thin planar heating element that is flexible and can replace metal heaters.
- The heat resistant temperature is 200°C on the surface of the heater.
Spec
- Width x length: 50mm x 50mm
- Used temperature: Regular operating temperature/200℃, Highest temperature/250℃
- Rating voltage: AC100V
- Capacity tolerance: +/- 10%
- Power density: 0.5W/cm2 (100VAC)
- Insulation resistance value: 100MΩ or more/500VDC
- Withstand voltage: 1500V/1 minute
- Lead wire length: 300mm
- Magnetization force: 0.04T
- Thickness: 1.5mm
- *Please *** with close to the object to be heated.
- *It is not a temperature self control type, Dep***ing on the situation, attach an temperature controller, etc., Use as the surface temperature to be definitely 200℃ or less.
- *Waterproof function is not available. Do not directly put into liquid.
- RoHS3 (EU)2015/863 Certificates can be issued
