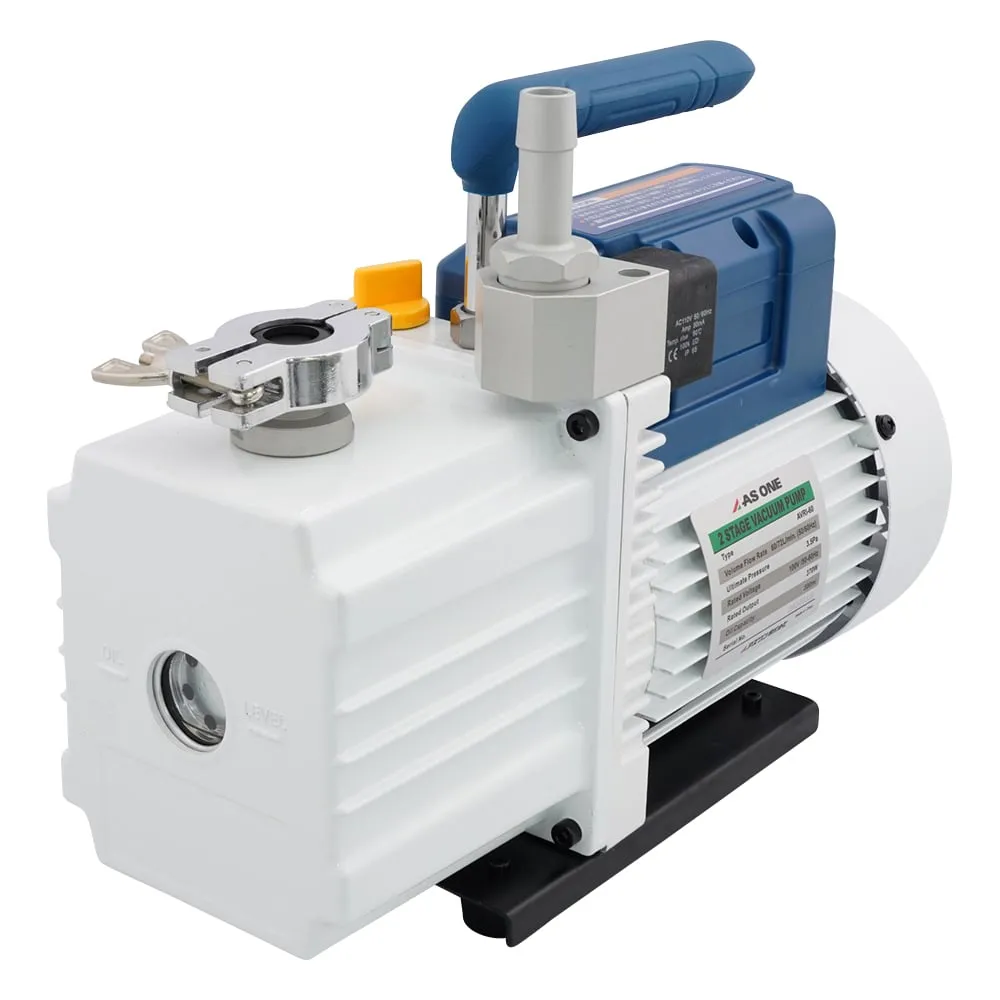

2-928-02 Oil-Sealed Rotary Vacuum Pump 337 x 138 x 244mm AVRI-60
Product Description
Product Model: 2-928-02Product Brand: AS ONE Corporatio […]
Contact Us
Product Details
Product Model: 2-928-02
Product Brand: AS ONE Corporation
Features
- A standard type with full functions and options.
- A compact two-stage vacuum pump with excellent durability that can be ***d in a wide range of applications.
- A gas ballast valve is included to prevent contamination by oil condensable gas and moisture.
- The backflow prevention solenoid valve prevents backflow of oil when the power is turned off.
- Optional oil mist trap connection.
- You can optionally choose a wide range of tube joints to suit your vacuum line.
Spec
- Ultimate pressure (with gas ballast valve closed): 3.5Pa (2.6 x 10^-2Torr)
- Ultimate pressure (with gas ballast valve opened): 10Pa (7.5 x 10^-2Torr)
- Inlet port: φ15mm
- Exhaust opening: KF16
- Oil volume: 0.3L
- Ambient temperature range: 5 - 40℃
- Noise: 62dB or less
- Size: 337 x 138 x 244mm
- Power supply: 100VAC 50/60Hz
- Power cord length: 1.5m (3P plug)
- Weight: 11kg
- Exhaust speed (L/min): 60/72 (50/60Hz)
- Type: 2 stage type
- 2 stage type, standard
- Model number: AVRI-60
