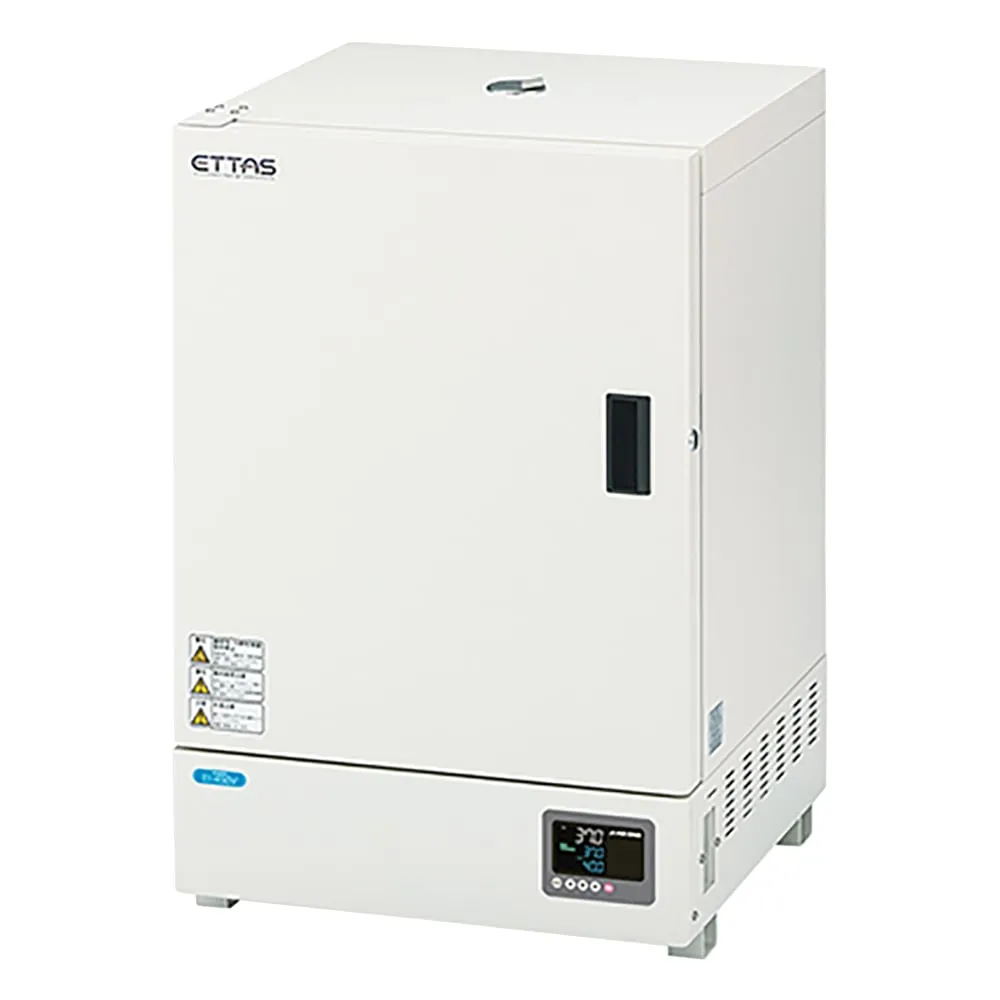

1-7473-42 Incubator (Timer, Air Jacket Natural Convection ) 91L EI-450V
Product Description
Product Model: 1-7473-42Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-7473-42
Product Brand: AS ONE Corporation
Features
- Safety is further considered with the standard installation of an indep***ent excessive rise prevention device that can digitally set the set temperature.
- Uses a highly visible color LCD display for improved operability.
- In addition to the PV/SV two-stage display that makes it easy to check the measured values and the set values, the over-temperature rise prevention set temperature display is adopted.
- Four timer functions (ON, OFF, ON/OFF, SV start) are provided as standard, and you can choose from four types according to the quantity and size of the sample.
- The air jacket type natural convection system provides a uniform and stable temperature environment and prevents the sample from drying out.
- You can observe the sample without opening the double door type inner door with transparent inner door.
- The temperature control ***s PID control, which enables stable temperature control with high accuracy.
- A security key is included.
Spec
- Model number: EI-450V
- Capacity (L): 91
- Temperature range: Room temperature +5 - 80℃
- Convective system: Natural convection air jacket
- Temperature adjustment range: Room temperature +5 - 80℃
- Temperature distribution width: 2℃ (at 37℃)
- Temperature control system: PID control, SSR output
- Additional function: Timer (ON timer, OFF timer, SV start, ON/OFF timer)
- Safety device: Indep***ent excessive temperature rise prevention device (operation temperature digital settings available), overcurrent breaker, burnout mechanism (heater is OFF when sensor is disconnected)
- Heater capacity: 200W
- Temperature sensor: Platinum resistance thermometer Pt 100Ω
- Excessive rise prevention sensor: K thermocouple
- Chamber capacity: 91L
- Shelf pitch, number of steps: 35mm pitch, 11 steps
- Exterior/interior: Steel powder coating/stainless steel (SUS304)
- Inner door material: Strengthened glass
- Exhaust opening: φ32mm x 1 piece
- Weight: Approx 40kg
- Power supply: 100VAC 50/60Hz cord length 2m 3P plug
- Shelf board load capacity: 5kg
- Accessories: Shelf board x 2 sheets, shelf board rail x 2 sets
