Features

• These cables are not int***ed as power cables or cables for direct connection to the equipment's main power source.

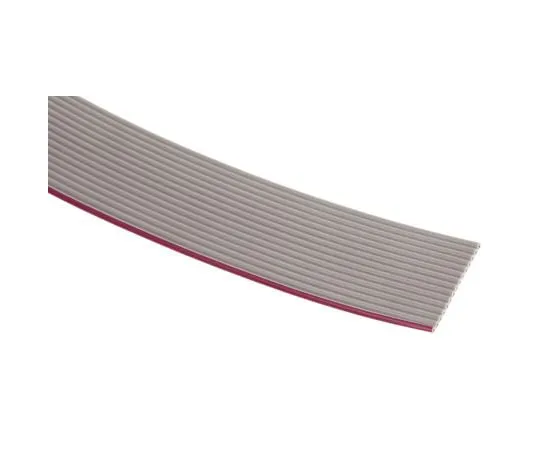

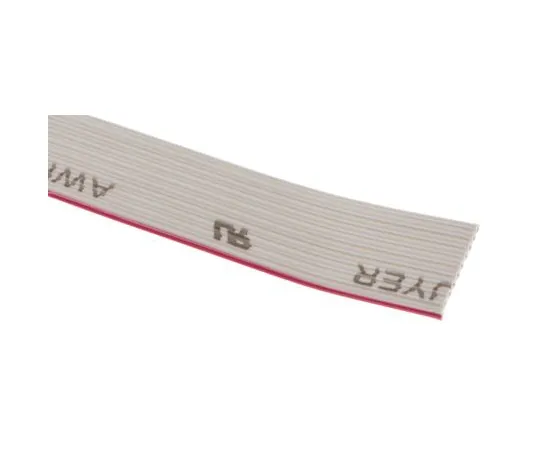

• IDC Ribbon Cable
• Int***ed for *** with all commonly available IDC connectors. A flat ribbon cable consisting of stranded parallel tin-plated copper conductors laminated between layers of gray PVC film, suitable for *** with Speedbloc (R) pressure welded connectors.
• The inter-conductor pitch is 0.05 inches (1.27 mm). At one ***, the red marker indicates the first conductor. The conductor can be split into several parts. The alignment and the laminate for accurate inter-conductor spacing are essential for assemblies with connectors. Each conductor consists of 7 strands of 36 awg (0.13 mm diameter), equivalent to a total of 28 awg (0.08 mm2).
• Conform to UL Standard 2651
