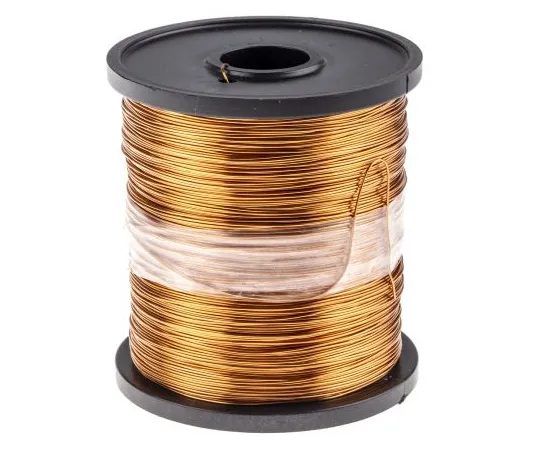

63-4605-78 RS PRO Single Core 0.45mm diameter Copper Wire, 400m Long 357-738
Product Description
Product Model: 63-4605-78Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4605-78
Product Brand: RS PRO
Features
- At normal soldering temperatures, polyurethane coding can produce small amounts of toluene diisocyanate.
- For this reason, flue gas may be required to avoid exceeding the maximum allowable concentration.
- The color of the insulation may vary.
- Insulated Copper Wire
- Grade 2 copper single wire with self-flux polyurethane coating for winding transformers, coils, etc.
- Complies with BS6811 Section 3-1 (IEC317-20) Maximum continuous temperature: +155°C 500 g reel
Spec
- Cross Sectional Area:0.13 mm²
- American Wire Gauge:26 AWG
- Core Strands:1/0.4 mm
- Insulation Material:PUR
- Outer Diameter:0.45mm
- Length:400m
- Finish:Enamelled
- Wire Style:EN 60317/20
- Maximum Operating Temperature:+155°C
- Shield Type:Unshielded
- Cable Type:Single Core
- CODE No.:357-738
