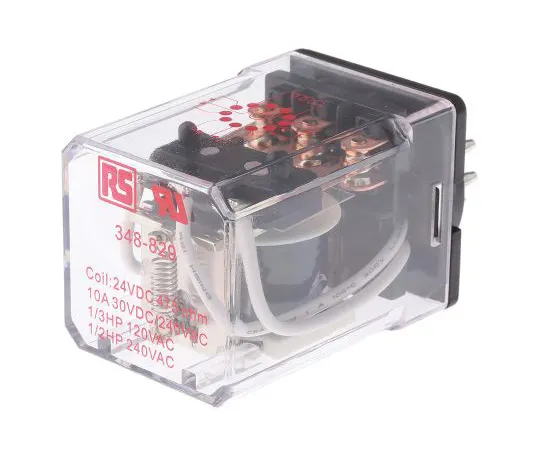

63-4604-58 RS PRO, 24V dc Coil Non-Latching Relay 3PDT, 10A Switching Current Plug In, 3 Pole 348-829
Product Description
Product Model: 63-4604-58Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4604-58
Product Brand: RS PRO
Features
- 10 A Industrial Relay • Clear polycarbonate cover protects DIN Rail or surface mount Contact Material: Ag + Au Flash Plated Contact Rating: 10 A Maximum switching voltage: 250 V ac, 30 V dc Mechanical life: Operation 10 7 times (min) Electrical life: Operation 10 5 times (min) Maximum temperature at rated coil voltage: 65°C Dimensions: H 53 mm, W 36 mm, D 36 mm Socket available (8 pin socket part number < 403-235 & 402-147') 403-235 & 402-147/, 11 pin socket part number < 402-153 & 403-241') 402-153 & 403-241 11 pin relay cover available (part number < 402-169') 402-169
Spec
- Coil Voltage:24V dc
- Coil Power:1.2W
- Coil Resistance:478 Ω
- Isolation Coil To Contact:1.5kV ac
- Contact Configuration:3PDT
- Mounting Type:Plug In
- Switching Current:10A
- Terminal Type:Through Hole
- Number of Poles:3
- Maximum Switching Voltage AC:240V ac
- Maximum Switching Voltage DC:30V dc
- Height:56mm
- CODE No.:348-829
