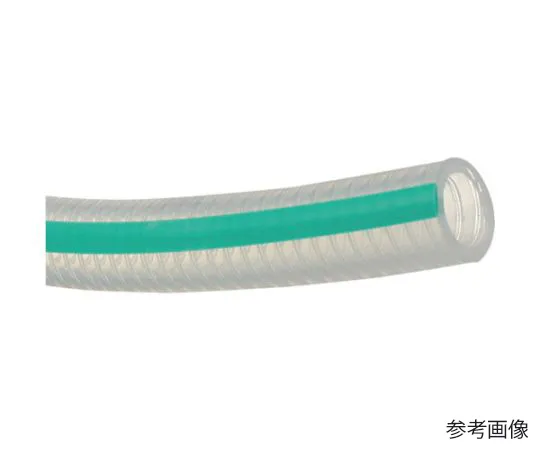

67-2222-98 Heat and Pressure Resistant Hose for Food Toyosilicone P Hose Inner Diameter 25.4 mm x Outer Diameter 35.5 mm Length 10 m TSIP-25-10
Product Description
Product Model: 67-2222-98Product Brand: TOYOX CO., LTD. […]
Contact Us
Product Details
Product Model: 67-2222-98
Product Brand: TOYOX CO., LTD.
Features
- Has excellent heat and cold resistance and can be pumped and sucked in a wide range of temperature conditions.
- Soft with special PET resin coil reinforcement, resistant to breaking and crushing, suitable for piping in narrow places.
- Since the reinforcing material is resin, it is easy to cut the hose and install.
- With high transparency, you can check the fluid and feel safe.
- Since the reinforcing material is resin, there is no need for separate disposal like metal reinforcement.
- [Compliance] Food Sanitation Law compliant, FDA (US Food and Drug Administration) registered product, RoHS2 revised regulations compliant, safe and secure heat resistant food hose.
- For heat resistance, food and chemicals.
Spec
- Length (m): 10
- Inner diameter (mm): 25.4
- Outer Diameter (mm): 35.5
- Working pressure (MPa): -0.05~0.2
- Allowable b*** radius (mm or more): 195
- Operating temperature range: -30~100°C
- Compliant with Food Sanitation Law (2012 the Ministry of Health, Labour and Welfare Notification No. 595)
- FDA (Food and Drug Administration) registration
- Color: Milky white
- Color: Milky white/with green line
- Material/Finish: Main Material/Silicone Rubber, Reinforcement/Special PET Resin
- Do not *** for medical purposes.
- Use the hose within the operating temperature and pressure ranges. However, never *** for steam, animal or vegetable oil over 70°C.
- The hose expands and contracts due to internal pressure, so make sure to leave plenty of room for piping.
- When pressurizing, open and close the valve slowly so that shock pressure is not applied.
- Do not directly soak the *** face or fitting of the hose in the fluid (food, chemicals, etc.) in the tank. Fluid may seep into the hose reinforcement layer or remain in the joint, causing the propagation (adhesion) of bacteria and deterioration of the hose.
- Country of origin: Japan
- Securities Code: 195-2790
