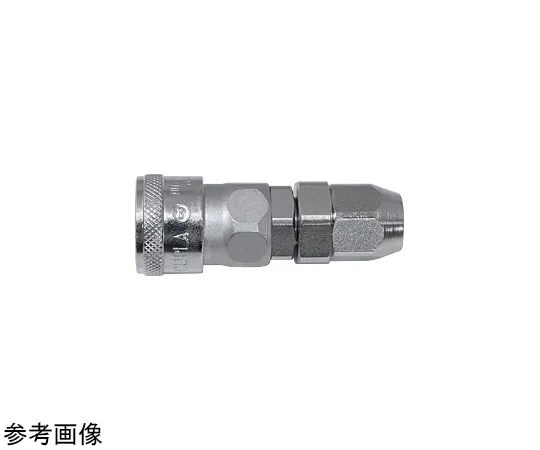

65-9569-31 Rotary Nut Coupler Opposing Hose Size (mm): Φ6.5 x Φ10 Mass (g): 120 L (mm): 67.3 65SNR
Product Description
Product Model: 65-9569-31Product Brand: NITTO KOHKI CO. […]
Contact Us
Product Details
Product Model: 65-9569-31
Product Brand: NITTO KOHKI CO., LTD.
Features
- For low pressure.
- Attaches hose without hose band.
- To attach to the hose, simply insert the nipple and tighten the nut.
- Since the outer peripheral surface of the hose is tightened, it has a structure that prevents the hose from coming off and the fluid from flowing out.
- There is also a rotary nut Coupler with a ball-bearing swivel mechanism that reduces the burden on the hands beca*** the hose does not twist.
- Can be connected to "High Coupler" models 10, 17, 20, 30 and 40.
- Compatibility: Can be connected to products of the "High Coupler" series (except 400, 600 and 800 models) and the "Nat Coupler" series.
Spec
- Opposing Hose Size (mm): Φ6.5 x Φ10
- Mass (g): 120
- L(mm):67.3
- ΦD(mm):26.5
- ΦB(mm):5.3
- H (mm): Hex 19
- T (mm): Hex 17
- Valve Structure: One Way Opening/Closing Type
- Applied fluids: Air, Water
- Maximum Working Pressure (MPa{kgf/cm2}): 1.5{15}
- Pressure Capacity (MPa{kgf/cm2}): 2.0{20}
- Recomm***ed maximum tightening torque range (N · m{kgf · cm}): 9~11{92~112}
- Type: Socket
- Specifications: With Rotary Mechanism/Rotary Nut Coupler
