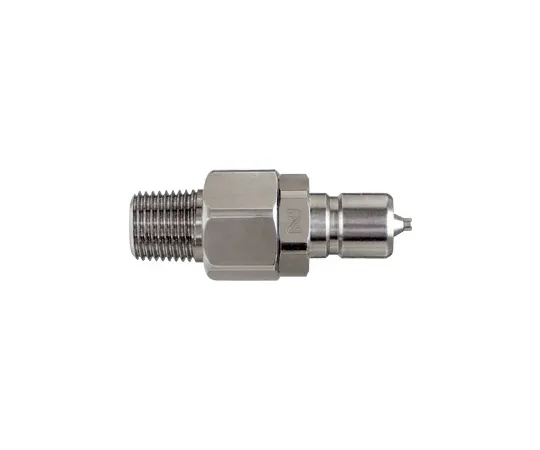

65-9569-27 Compact Coupler mating screw size: Rc1/8 mass (g): 19 CO-1PMSUS304EPDM
Product Description
Product Model: 65-9569-27Product Brand: NITTO KOHKI CO. […]
Contact Us
Product Details
Product Model: 65-9569-27
Product Brand: NITTO KOHKI CO., LTD.
Features
- For low pressure.
- Built-in automatic valve on socket plug.
- Compatible with temperature control piping and physical and chemical equipment.
- The body is made of stainless steel and has excellent corrosion resistance. Stainless steel ***s SUS304.
- Compatibility: The socket and plug can be connected regardless of the mounting shape.
Spec
- Mating Side Mounting Screw Size: Rc1/8
- Body Material: Stainless Steel
- Mass (g): 19
- L(mm):36
- ΦD(mm):15.5
- H (mm): Hex 14
- T:R1/8
- ΦB(mm):5.5
- Valve Structure: Double Road Opening/Closing Type
- Applied fluids: Air, Water
- Maximum Working Pressure (MPa{kgf/cm2}): 1.0{10}
- Pressure Capacity (MPa{kgf/cm2}): 1.5{15}
- Seal Material: Ethylene Propylene Rubber
- display symbols: EPDM
- Operating Temperature Range (°C): -40 to +150
- Remarks: Semi-standard product
- Recomm***ed maximum tightening torque (N · m{kgf · cm}): 9{92}
- Mounting Shape: Male Screw
- Type: Plug
