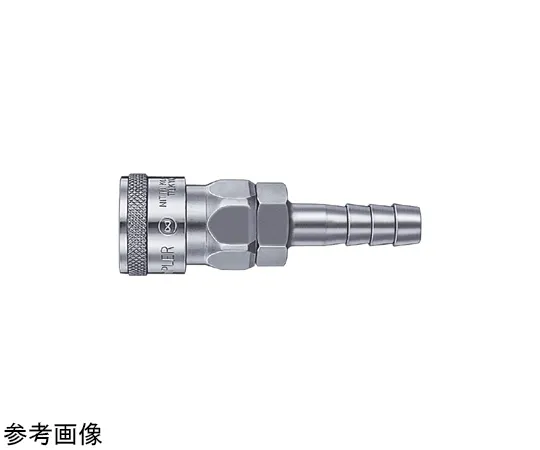

65-9568-33 High-coupler Opposing Hose Size: 1/4 Mass (g): 99 20SHSTEELNBR
Product Description
Product Model: 65-9568-33Product Brand: NITTO KOHKI CO. […]
Contact Us
Product Details
Product Model: 65-9568-33
Product Brand: NITTO KOHKI CO., LTD.
Features
- For low pressure.
- "Coupler" with excellent versatility, from air piping in factories to hose connections for air tools.
- Steel is suitable for air. However, be aware that the fluid on the plug side will flow out during separation.
- Critical steel components are heat-treated to improve strength. Especially excellent in abrasion resistance and durability.
- A wide range of body materials, sizes and mounting shapes have been standardized to meet a wide range of pneumatic applications.
- Compatibility: Model 10, Model 17, Model 20, Model 30, Model 40 can connect the socket and plug regardless of the mounting shape. Can be connected to products of the "High Coupler" series and "Nat Coupler" series.
Spec
- Opposing Hose Size: 1/4
- Body Material: Steel
- Mass (g): 99
- L(mm):72.5
- ΦD(mm):26.5
- A(mm):30
- ΦT(mm):9
- ΦB(mm):5
- Valve Structure: One Way Opening/Closing Type
- Applied Fluid: Air
- Maximum Working Pressure (MPa{kgf/cm2}): 1.5{15}
- Pressure Capacity (MPa{kgf/cm2}): 2.0{20}
- Seal Material: Nitrile Rubber
- display symbols: NBR
- Operating Temperature Range (°C): -20 to +80
- Remarks: Standard Material
- Mounting Shape: Hose Nipple
- Type: Socket
