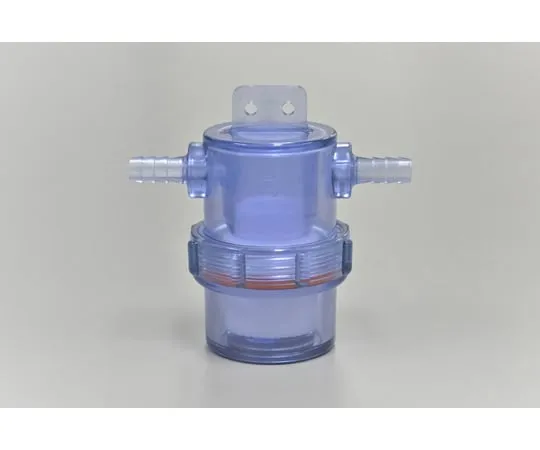

65-9088-68 Strainer (Inline Strainer) 6φ STR-V06PEF-EP
Product Description
Product Model: 65-9088-68Product Brand: ARAM Corporatio […]
Contact Us
Product Details
Product Model: 65-9088-68
Product Brand: ARAM Corporation
Features
- It can easily separate and remove foreign matter and dust flowing in piping.
- Made of resin, lightweight and compact design with palm size.
- Since the body material is made of transparent PVC, it has excellent chemical resistance, and the clogging condition of the mesh can be easily monitored.
- A fixing part is provided on the upper part of the main body for easy installation in the equipment.
- Made in Japan with high quality and stable supply, you can *** it with confidence.
- The main body is equipped with a "porous PE" filter as standard. ・When cleaning the mesh, it is better to *** [Maintenance Cup STR-MC HDPE] (2157-81) (*) sold separately.
- It can easily separate and remove foreign matter and dust mixed in the liquid in the piping.
- Recomm***ed for preventing foreign matter bite in the discharge pump.
- *Notes
- Lightly tighten the bowl part and tighten it by 45° (1/8 turn) from the position where it stopped before ***.
- *Periodically monitor the clogging condition of the mesh and clean it as necessary.
Spec
- Total Height Size (mm) (When Mounted): 74
- Maximum width dimension (mm): 77
- Applicable Tube Approximate Inner Diameter (φ): 6
- Upper Mounting Hole Dimensions (φ): Approx. 3.3 (Pitch 10 mm x 2 Locations)
- Material: Body/Bowl/Transparent PVC (PVC), Mesh/Sintered HDPE Filter
- Sintered HDPE Filter: Pore Diameter 70μ/Porosity: 35~40%
- Packing Material: EPDM
- Working pressure (kPa): Recomm***ed: 600 or less
