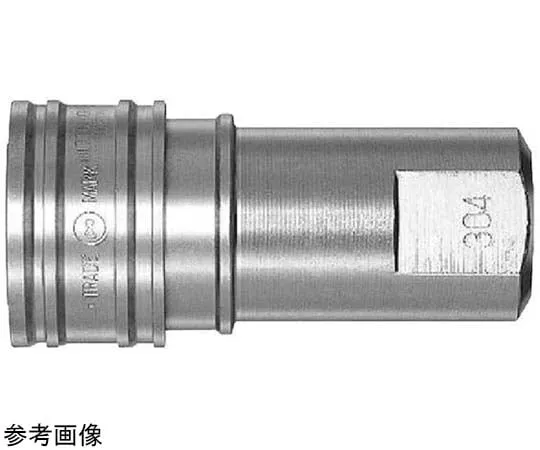

65-9010-66 84 g Socket for Semi-Con-Coupler 10~20 L 1S-304-NPT-PSUS304
Product Description
Product Model: 65-9010-66Product Brand: NITTO KOHKI CO. […]
Contact Us
Product Details
Product Model: 65-9010-66
Product Brand: NITTO KOHKI CO., LTD.
Features
- For high-purity chemicals.
- Uses stainless steel (SUS304) for the body and spring. In addition, electrolytic polishing is applied to enhance corrosion resistance.
- General-purpose type that ***s rubber as the sealing material.
- Sealant can be selected according to fluid and application. It flexibly supports semiconductor manufacturing processes.
- No grease specification, so no grease is applied to the sealant.
- All parts are cleaned and assembled, inspected and packaged in a clean room.
- The plug is equipped with a cap as standard.
Spec
- Container Capacity (L): For 10~20
- Mass (g): 84
- L(mm):48
- ΦD(mm):24
- H (mm): two sides 14
- T:1/8-27NPT
- Valve Structure: Double Road Opening/Closing Type
- Applicable fluids: High purity chemicals, water, various industrial gases, air
- Body Material: Stainless Steel (SUS304, Electropolishing (SPE))
- Maximum Working Pressure (MPa{kgf/cm2}): 0.2{2}
- Pressure Capacity (MPa{kgf/cm2}): 0.3{3}
- Seal Material: Perflo
- Display symbol: P
- Operating Temperature Range (°C): 0 to +50
- Remarks: Standard Material
- Recomm***ed maximum tightening torque (N · m{kgf · cm}): 9{92}
- Type: Socket
