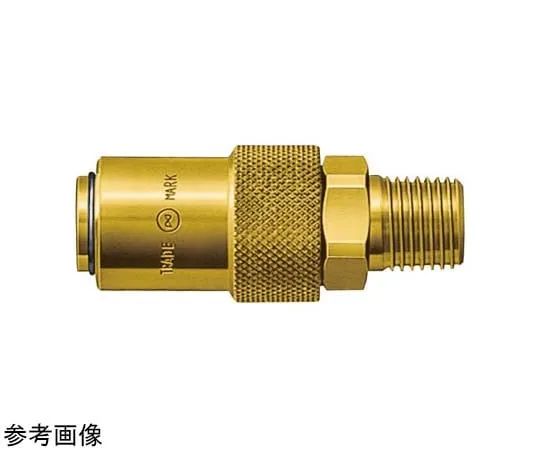

65-9008-72 Kanagata Coupler Screw Size Rc3/8 82 g K-03SMBRASSFKM
Product Description
Product Model: 65-9008-72Product Brand: NITTO KOHKI CO. […]
Contact Us
Product Details
Product Model: 65-9008-72
Product Brand: NITTO KOHKI CO., LTD.
Features
- For low pressure.
- Thorough pursuit of single mold replacement.
- Rust-resistant and rich variety.
- Space-saving design that can be ***d for molds with narrow openings.
- The socket is a long sleeve type.
- Hose connection and separation of mold cooling water can be performed quickly.
- Various sizes and mounting shapes have been standardized to meet a wide range of mold applications.
- The "Super Coupler" can be connected.
- Plug and socket connection is a one-touch connection by simply pushing in. (Socket has built-in automatic valve)
- Compatibility: The socket and plug can be connected regardless of mounting shape and size. It is not compatible with large flow type "mold Coupler" (K3, K4 series).
Spec
- Mating Side Mounting Screw Size: Rc3/8
- Mass (g): 82
- L(mm):52
- ΦD(mm):21
- Φd(mm):18.5
- N(mm):16.8
- A(mm):29
- H (mm): Hex 19
- T:R3/8
- ΦB(mm):6
- Valve Structure: One Way Opening/Closing Type
- Applicable Fluid: Water, Warm Oil
- Body Material: Brass
- Maximum Working Pressure (MPa{kgf/cm2}): 1.0{10}
- Pressure Capacity (MPa{kgf/cm2}): 1.5{15}
- Recomm***ed maximum tightening torque (N · m{kgf · cm}): 11{112}
- Seal Material: Fluororubber
- display symbols: FKM
- Operating Temperature Range (°C): -20 to +180
- Remarks: Semi-standard product
- Mounting Shape: Male Screw
- Type: Socket
