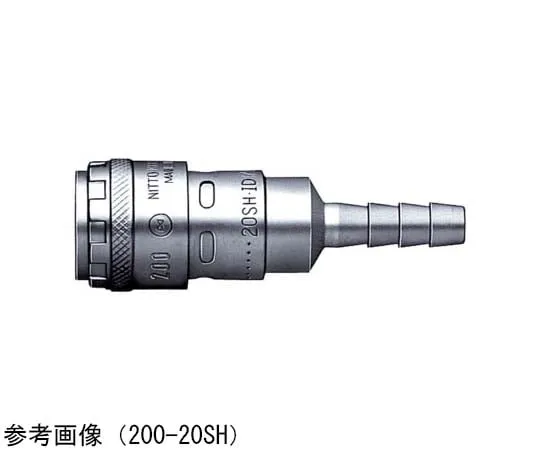

65-9008-30 High Coupler 200 Hose Size 1/4 90 g Socket 200-20SHSTEELNBR
Product Description
Product Model: 65-9008-30Product Brand: NITTO KOHKI CO. […]
Contact Us
Product Details
Product Model: 65-9008-30
Product Brand: NITTO KOHKI CO., LTD.
Features
- For low pressure.
- Plug and socket connection is a one-touch connection by simply pushing in.
- Uses valve structure with low pressure loss. Achieves increased flow rate.
- The seal at the time of connection adopts the *** face packing method.
- Reduced connection load further improves operability.
- Compared to the outer circumference O-ring system, the packing is not damaged by running out of grease and has excellent durability.
- The body material is only steel and cannot be ***d for water or oil.
- Compatibility: Can be connected to "High Coupler" models 10, 17, 20, 30 and 40. Can be connected to products of the "High Coupler" series (except 400, 600, and 800 models) and the "Nat Coupler" series.
Spec
- Opposing Hose Size: 1/4
- Mass (g): 90
- L(mm):77
- A(mm):27.5
- ΦT(mm):9
- ΦB(mm):5
- Valve Structure: One Way Opening/Closing Type
- Applied Fluid: Air
- Body Material: Steel (Chrome Plated)
- Maximum Working Pressure (MPa{kgf/cm2}): 1.5{15}
- Pressure Capacity (MPa{kgf/cm2}): 2.0{20}
- Seal Material: Nitrile Rubber
- display symbols: NBR
- Operating Temperature Range (°C): -20 to +60
- Remarks: Standard Material
- Mounting Shape: Hose Nipple
- Type: Socket
