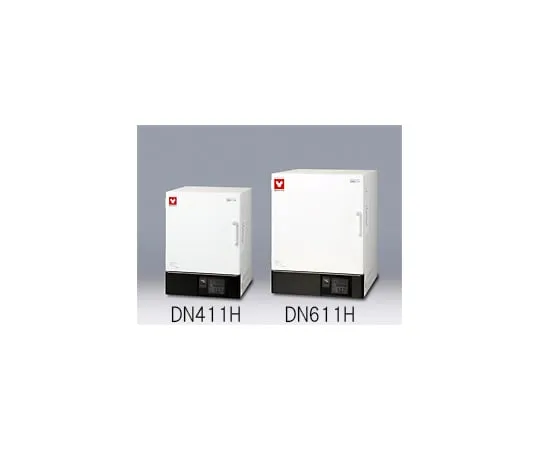

61-9660-20-90 【Global Model】Forced Convection Oven (High Temp.) DN411H DN411H
model:
61-9660-20-90
brand:
Yamato Scientific Co., Ltd.
category:
Traffic management and crowd control
Product Description
Product Model: 61-9660-20-90Product Brand: Yamato Scien […]
Contact Us
Product Details
Product Model: 61-9660-20-90
Product Brand: Yamato Scientific Co., Ltd.
Features
- Operability/Function
- Heat resistance testing and heat treatment at high temperatures up to 360°C can be performed easily.
- The operating temperature range is wide and high precision temperature control is possible.
- In addition to various operation modes including program operation, various support functions such as calibration offset function, power failure recovery mode selection, ***r setting information storage and ringing function are provided as standard.
- Program operation of up to 99 steps, 99 patterns and repetition is possible.
- Equipped with power supply/operation time integration function.
- With cable holes, data can be easily collected from internal sample equipment.
- Safety and maintenance: We have further enhanced safety features such as a self-diagnosis function and a digital setting indep***ent excessive rise prevention device. When the door is opened during operation, the door switch operates to turn off the fan and heater.
Spec
- Circulation method: Forced air circulation
- Operating temp. range: RT+15~360℃
- Temp. adjustment accuracy: ±0.2℃ (at 360℃) JTM K05
- Temp. fluctuation: 1.2℃(at 360℃) JIS
- Temp. distribution accuracy: ±3.0℃(at 360℃) JTM K05
- Temp. gradient: 12℃(at 360℃) JIS
- Max. temp. reaching time: Approx. 60 min
- Internal dimentions(WxDxH): 470 x 450 x 450mm
- External dimentions(WxDxH): 640 x 695 x 915mm
- Internal capacity: Approx. 95L
- No. of steps/pitch: 12 steps/30mm
- Shelf load capacity : Approx. 30 kg/pc
- Power supply: AC220V 50/60Hz single phase 15A (plug is not included)
- Weight: Approx. 90kg
- Accessories: Stainless shelf x 2, Shelf bracket x 4, Manual
