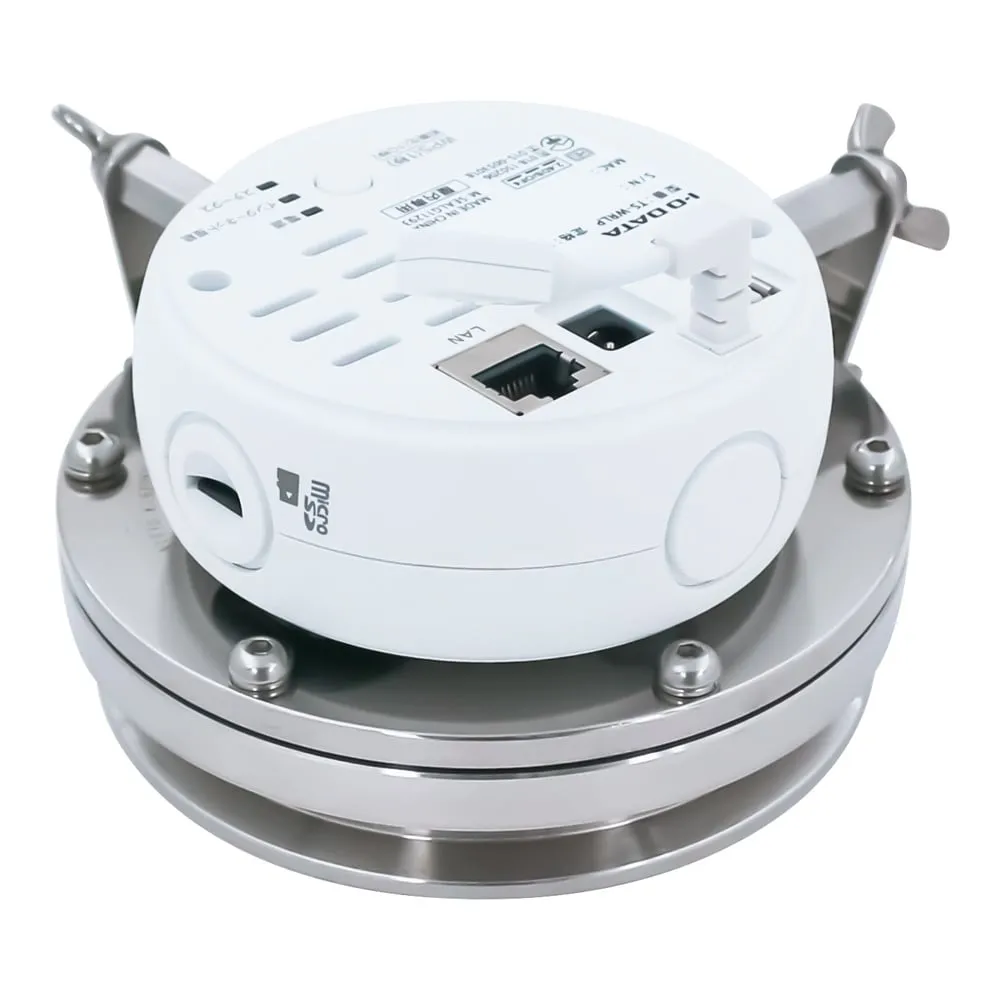

4-4315-01 Peeping Window with Camera NMB-CA-4S
model:
4-4315-01
category:
laboratoryworkbench
Product Description
Product Model: 4-4315-01 Features You can monitor the i […]
Contact Us
Product Details
Product Model: 4-4315-01
Features
- You can monitor the inside of the peephole (sight glass) with a network camera.
- If you have an Internet connection, you can connect it to your smartphone, tablet or PC and check it in real time.
- The peephole is connected with a helleur and can be installed immediately if there is a 4S helleur on the lid of the container.
Spec
- Herule size: 4S
- Visible range (mm): phi 90
- Width x Height (mm): 149.5 x 73.5
- Materials: Wetted Part/SUS 316 L, Cover/SUS 304, Flat Packing/Silicon Rubber, Window/Heat Resistant Tempered Glass
- Heat-resistant strength: 0.16 MPa
- < Camera specifications >
- 2 million pixel CMOS sensor camera
- Angle of view: horizontal approx. 79 degrees/vertical approx. 43 degrees/diagonal approx. 85 degrees
- Operating temperature/humidity: 0 ~ 40 degrees C/20 ~ 80% (noncondensing)
- Power supply: AC adapter (included)
- *It is not suitable for *** in the dark beca*** light from the peephole is required for internal monitoring. A separate light is required for monitoring in the dark.
- *Helle gaskets and clamp bands required for installation are sold separately.
