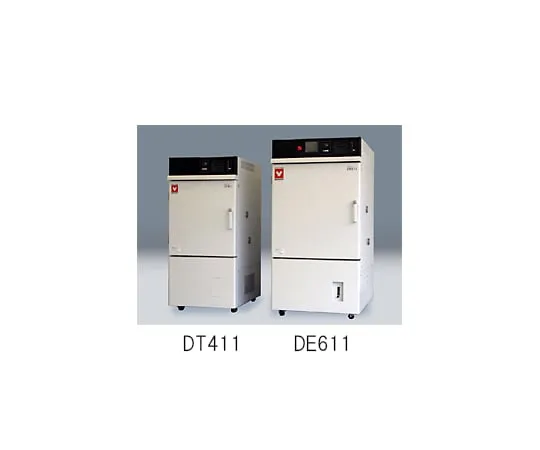

61-9659-68-90 【Global Model】Clean Oven DE411 DE411
model:
61-9659-68-90
brand:
Yamato Scientific Co., Ltd.
category:
Traffic management and crowd control
Product Description
Product Model: 61-9659-68-90Product Brand: Yamato Scien […]
Contact Us
Product Details
Product Model: 61-9659-68-90
Product Brand: Yamato Scientific Co., Ltd.
Features
- Equipped with a V-type controller, the display visibility and operability of the operation panel are improved, and power and CO2 emission monitoring functions are provided as standard equipment.
- We have reduced the price and improved the cost performance of our customers through a variety of functions.
- Adoption of Antifouling Casters (Prevention of wheel dirt during transportation and movement)
- Improved visibility of HEPA filter replacement timing by displaying 3 colors in the differential pressure meter
- Improved safety by detecting incorrect wiring of power supply during installation by adding antiphase (reverse phase) relay
- Improved usability by changing product height (DE/DT411 type approx. 200 mm lower)
- Cable hole diameter from φ30 to φ33 (power plug can be pulled in)
- Full options (added basket shelf/simple clean room support)
Spec
- Circulation method: Forced air circulation
- Operating temp. range: RT+30～260℃
- Temp. adjustment accuracy: ±0.3℃ (at 260℃) JTM K05
- Temp. fluctuation: 1.0℃（at 260℃） JIS
- Temp. distribution accuracy: ±2.5℃（at 260℃） JTM K05
- Temp. gradient: 10℃（at 260℃） JIS
- Max. temp. reaching time: Approx. 70 min (at 260℃）
- Clean level: Class 100 (when the temp. is stable)
- Internal dimentions(WxDxH): 450 x 450 x 450mm
- External dimentions(WxDxH): 700 x 1025 x 1570mm
- Internal capacity: Approx. 91L
- No. of steps: 12 steps
- Power supply: AC380V 50/60Hz Three phase 5A
- Weight: Approx. 200kg
- Accessories: Stainless shelf x 2, Shelf bracket x 4, Manual
