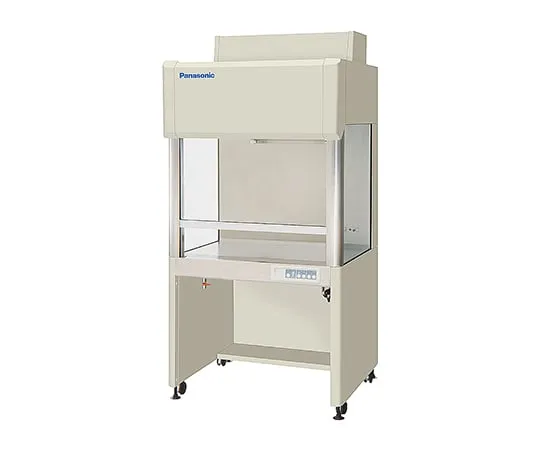

61-9169-88 Bio Clean Bench Forced Circulation Exhaust Type 930 x 811 x 1890mm MCV-B91F-PJ
gasmonitors

61-9169-88 Bio Clean Bench Forced Circulation Exhaust Type 930 x 811 x 1890mm MCV-B91F-PJ

model: 61-9169-88
brand: Panasonic Healthcare Co., Ltd.
category: gasmonitors

Product Description

Product Model: 61-9169-88Product Brand: Panasonic Healt […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-9169-88
Product Brand: Panasonic Healthcare Co., Ltd.

Features

  • Personal type for bio ***
  • Forced circulation exhaust type (weak negative pressure type) with consideration for workers and the surrounding space.
  • Distributed suction system to prevent cross contamination.
  • An air curtain mechanism that blocks the outside from the work area.
  • Airflow variable device (optional) convenient for sample extraction and burner ***.
  • Outer type fluorescent lamp that prevents temperature rise in the work area.
  • Laminar flow that maintains high cleanliness (vertical laminar flow).
  • PAO nozzle convenient for HEPA filter performance test.
  • An electronically ignitable gas burner (optional) that is highly secure and prevents temperature rise.
  • A three-part body structure that is easy to carry in, install, and maintain.
  • Various functions and mechanisms to improve operability and workability.
  • Various alarm functions focusing on safety.

Spec

  • Width x Depth x Height (external dimension): 930 mm x 811 mm x 1890 mm
  • Material: Exterior / painted steel sheet / glass interior / glass interior / stainless steel plate finish
  • HEPA filter dust collection efficiency: 99.99% or more (0.3 μmPAO)
  • Cleanliness: Class 100 (Circumference: Class 1,000)
  • power supply (Max Power Consumption): Single phase 100 V 50Hz / 60Hz (* power cord length: 2.0 m) (253 W / 227 W)
  • Product mass: 209 kg
