Electronic/Electrical Parts and Controll Equipments

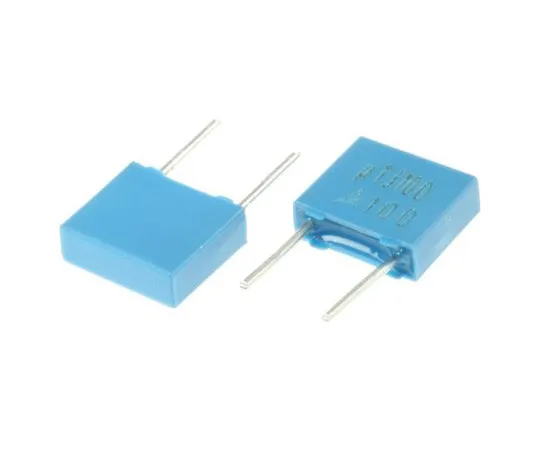

63-4603-72 Polyester Capacitor (PET) 63 V ac, 100 V dc 100 nF ±5% 1 Bag (25 Pieces) B32529C1104J000
Product Description
Product Model: 63-4603-72Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-4603-72
Product Brand: EPCOS
Features
- B32529 Series
- Typical applications: High contact reliability laminated film technology with RFI pulse resistance for general block, coupling, decoupling, bypass and automotive applications Epoxy resin sealed plastic case (UL94 V-0)
Spec
- Quantity: 1 Bag (25 Pieces)
- Capacitance: 100 nF
- Voltage: 63 V ac, 100 V dc
- Mounting Type: Through Hole
- Lead Pitch: 5 mm
- Series: B32529
- Tolerance: ±5%
- temperature characteristics: PET
- Length: 7.2 mm
- Depth: 2.5 mm
- Height: 6.5 mm
- Dimensions: 2.5 x 6.5 x 7.2 mm
- Minimum Operating Temperature: -55°C
- Maximum Operating Temperature: +125°C
- Tolerance (Plus): +5%
- RoHS compliance status: Compliance
- Securities Code: 334-300
