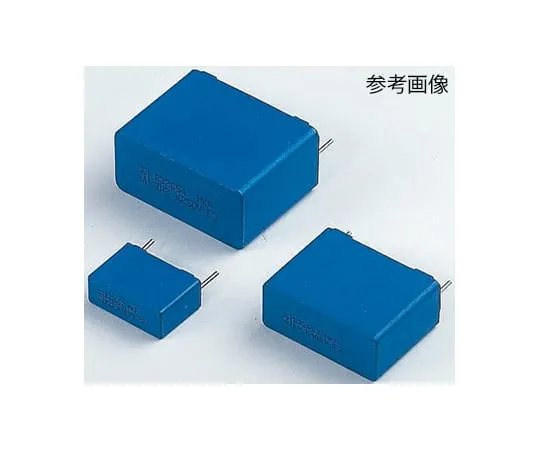

63-4603-66 Polyester Capacitor (PET) 40 V ac, 63 V dc 150 nF ±5% 1 Bag (25 Pieces) B32529C0154J000
Product Description
Product Model: 63-4603-66Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-4603-66
Product Brand: EPCOS
Features
- B32529 Series
- Typical applications: High contact reliability laminated film technology with RFI pulse resistance for general block, coupling, decoupling, bypass and automotive applications Epoxy resin sealed plastic case (UL94 V-0)
Spec
- Quantity: 1 Bag (25 Pieces)
- Capacitance: 150 nF
- Voltage: 40 V ac, 63 V dc
- Mounting Type: Through Hole
- Lead Pitch: 5 mm
- Series: B32529
- Tolerance: ±5%
- temperature characteristics: PET
- Length: 7.2 mm
- Depth: 2.5 mm
- Height: 6.5 mm
- Dimensions: 2.5 x 6.5 x 7.2 mm
- Minimum Operating Temperature: -55°C
- Maximum Operating Temperature: +125°C
- Lead Diameter: 0.5 mm
- RoHS compliance status: Compliance
- Securities Code: 334-215
