Features

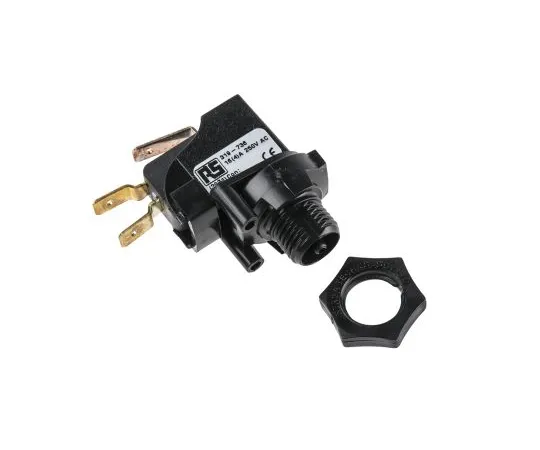

• Air Actuated Switches, Unipolar Elements, Surface Mounted/Through Panels
• Suitable for *** with all air actuators and accessories, a momentarily or latching unipolar air actuated switch with a surface mounting type that connects the air tube to the side and a through panel mounting type that connects the air tube to the base
• Through panel type is ideal when all electrical connections need to be sealed and separated from the environment in the enclosure
• Through panel mounting is possible with a 9/16 UNF nut (included). Alternatively, surface-mountable by using an additional 3.2 mm diameter mounting hole suitable for M3 or No. 6 self-tapping screws. The SPDT microswitch contacts are rated 15 A 250 V ac/30 V dc with 250 (1/4 inch) connection terminals.
• Operating temperature range: -10°C→+60°C (dep***s on the length of the tube). See Data Table)
