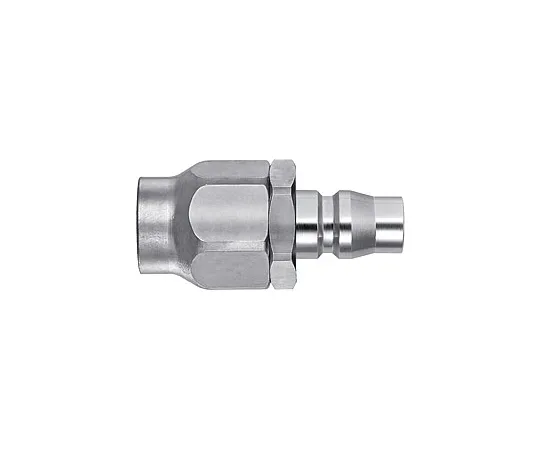

65-9007-44 High Coupler Φ9 x Φ15 mm Steel 86 g Plug 90PN-BHSTEEL
Product Description
Product Model: 65-9007-44Product Brand: NITTO KOHKI CO. […]
Contact Us
Product Details
Product Model: 65-9007-44
Product Brand: NITTO KOHKI CO., LTD.
Features
- For low pressure.
- Attaches hose without hose band.
- To attach to the hose, simply insert the nipple and tighten the nut.
- Since the outer peripheral surface of the hose is tightened, it has a structure that prevents the hose from coming off and the fluid from flowing out.
- Can be connected to "High Coupler" models 10, 17, 20, 30 and 40.
- Compatibility: Can be connected to products of the "High Coupler" series (except 400, 600 and 800 models) and the "Nat Coupler" series.
Spec
- Opposing Hose Size (mm): Φ9 x Φ15
- Counterpart Hose Thickness (mm): 3±0.3
- Body Material: Steel
- Mass (g): 86
- L(mm):51
- H1 (mm): Hex 23
- H2 (mm): Hex 24
- C(mm):20
- ΦB(mm):7.5
- Valve Structure: One Way Opening/Closing Type
- Applied Fluid: Air
- Maximum Working Pressure (MPa{kgf/cm2}): 1.5{15}
- Pressure Capacity (MPa{kgf/cm2}): 2.0{20}
- Recomm***ed maximum tightening torque range (N · m{kgf · cm}): 9~11{92~112}
- Type: Plug
- Specifications: High Coupler
