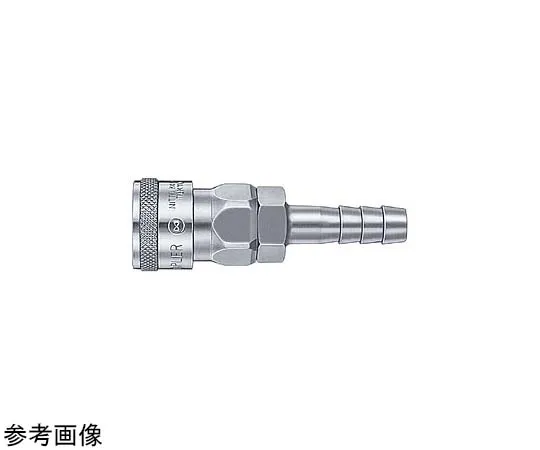

65-9007-18 High Coupler TW Hose Size 1/4 98 g Socket TW-20SHSTEELNBR
Product Description
Product Model: 65-9007-18Product Brand: NITTO KOHKI CO. […]
Contact Us
Product Details
Product Model: 65-9007-18
Product Brand: NITTO KOHKI CO., LTD.
Features
- For low pressure.
- A wide range of applications from air piping in factories to hose connections for pneumatic equipment.
- Heat treatment is applied to important components to improve strength. Especially excellent in abrasion resistance and durability.
- Size and mounting shape have been standardized to accommodate a wide range of pneumatic applications.
- Compatibility: Can be connected to "High Coupler" models 10, 17, 20, 30 and 40. Can be connected to products of the "High Coupler" series and "Nat Coupler" series.
Spec
- Opposing Hose Size: 1/4
- Mass (g): 98
- L(mm):72.5
- ΦD(mm):26.5
- A(mm):30
- ΦT(mm):9
- ΦB(mm):5
- Valve Structure: One Way Opening/Closing Type
- Applied Fluid: Air
- Body Material: Steel (Chrome Plated)
- Maximum Working Pressure (MPa{kgf/cm2}): 1.5{15}
- Pressure Capacity (MPa{kgf/cm2}): 2.0{20}
- Seal Material: Nitrile Rubber
- display symbols: NBR
- Operating Temperature Range (°C): -20 to +80
- Remarks: Standard Material
- Mounting Shape: Hose Nipple
- Type: Socket
