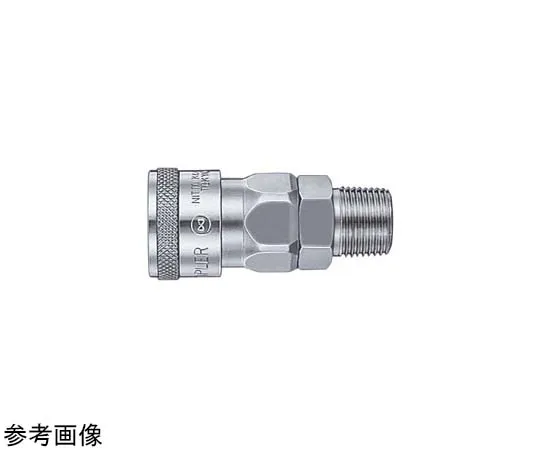

65-9007-03 High Coupler TW Screw Size Rc3/8 109 g Socket TW-30SMSTEELNBR
Product Description
Product Model: 65-9007-03Product Brand: NITTO KOHKI CO. […]
Contact Us
Product Details
Product Model: 65-9007-03
Product Brand: NITTO KOHKI CO., LTD.
Features
- For low pressure.
- A wide range of applications from air piping in factories to hose connections for pneumatic equipment.
- Heat treatment is applied to important components to improve strength. Especially excellent in abrasion resistance and durability.
- Size and mounting shape have been standardized to accommodate a wide range of pneumatic applications.
- Compatibility: Can be connected to "High Coupler" models 10, 17, 20, 30 and 40. Can be connected to products of the "High Coupler" series and "Nat Coupler" series.
Spec
- Mating Side Mounting Screw Size: Rc3/8
- Mass (g): 109
- L(mm):56.5
- ΦD(mm):26.5
- H (mm): Hex 19
- T:R3/8
- ΦB(mm):8
- Valve Structure: One Way Opening/Closing Type
- Applied Fluid: Air
- Body Material: Steel (Chrome Plated)
- Maximum Working Pressure (MPa{kgf/cm2}): 1.5{15}
- Pressure Capacity (MPa{kgf/cm2}): 2.0{20}
- Seal Material: Nitrile Rubber
- display symbols: NBR
- Operating Temperature Range (°C): -20 to +80
- Remarks: Standard Material
- Recomm***ed maximum tightening torque (N · m{kgf · cm}): 22{224}
- Mounting Shape: Male Screw
- Type: Socket
