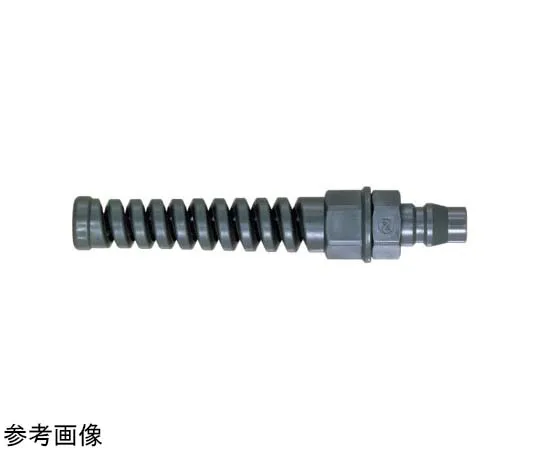

65-9006-87 High Coupler Ace Hose Size Φ5 x Φ8mm Plug 50PNG-PLAPOM
Product Description
Product Model: 65-9006-87Product Brand: NITTO KOHKI CO. […]
Contact Us
Product Details
Product Model: 65-9006-87
Product Brand: NITTO KOHKI CO., LTD.
Features
- For low pressure.
- Has pressure resistance performance equivalent to that of metal.
- Plug and socket connection is a one-touch connection by simply pushing in.
- Its weight is only about 1/4 of that of metal, so it is light and easy to handle.
- Fluid adapts to water as well as air.
- Fluid can flow from both the plug side and socket side.
- Compatibility: Can be connected to "High Coupler" models 10, 17, 20, 30 and 40. Can be connected to products of the "High Coupler" series (except 400, 600, and 800 models) and the "Nat Coupler" series.
Spec
- Opposing Hose Size (mm): Φ5 x Φ8
- Mass (g): 14
- L(mm):119
- ΦD(mm):23
- H (mm): Hex 19
- A(mm):90
- ΦB(mm):4
- Valve Structure: One Way Opening/Closing Type
- Applied fluids: Air, Water
- Body Material: Engineering Plastic (POM)
- Maximum Working Pressure (MPa{kgf/cm2}): 1.0{10}
- Pressure Capacity (MPa{kgf/cm2}): 1.5{15}
- Recomm***ed maximum tightening torque range (N · m{kgf · cm}): 1.6~2.0{16~20}
- Type: Plug
- Specifications: Resin Plug/Spring Nut Type
