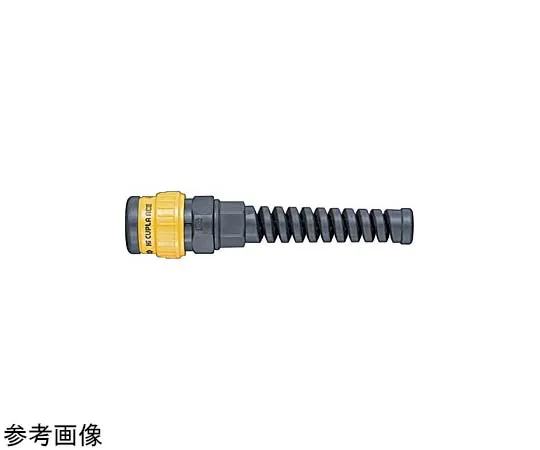

65-9006-17 High Coupler Ace Hose Size Φ8.5 x Φ12.5 mm Socket HA-85SNGPBTNBR
Product Description
Product Model: 65-9006-17Product Brand: NITTO KOHKI CO. […]
Contact Us
Product Details
Product Model: 65-9006-17
Product Brand: NITTO KOHKI CO., LTD.
Features
- For low pressure.
- Has pressure resistance performance equivalent to that of metal.
- Built-in "lock mechanism" that locks the sleeve at the same time of connection to prevent unexpected separation.
- Plug and socket connection is a one-touch connection by simply pushing in.
- Its weight is only about 1/4 of that of metal, so it is light and easy to handle.
- Fluid adapts to water as well as air.
- Fluid can flow from both the plug side and socket side.
- Compatibility: Can be connected to "High Coupler" models 10, 17, 20, 30 and 40. Can be connected to products of the "High Coupler" series (except 400, 600, and 800 models) and the "Nat Coupler" series.
Spec
- Opposing Hose Size (mm): Φ8.5 x Φ12.5
- Mass (g): 35
- L(mm):130
- H (mm): Hex 22
- A(mm):90
- ΦB(mm):7
- Valve Structure: One Way Opening/Closing Type
- Applied fluids: Air, Water
- Body Material: Engineering Plastic (PBT)
- Maximum Working Pressure (MPa{kgf/cm2}): 1.5{15}
- Pressure Capacity (MPa{kgf/cm2}): 2.0{20}
- Seal Material: Nitrile Rubber
- display symbols: NBR
- Operating Temperature Range (°C): -20 to +60
- Remarks: Standard Material
- Recomm***ed maximum tightening torque range (N · m{kgf · cm}): 2.2~2.8{22~29}
- Type: Socket
- Specifications: Spring Nut Type
