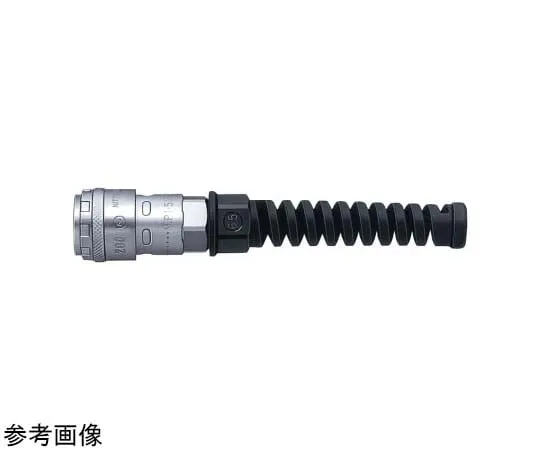

65-9005-58 Nut Coupler 200 Φ8.5 x Φ12.5 mm Socket 200-85SNGSTEELNBR
Product Description
Product Model: 65-9005-58Product Brand: NITTO KOHKI CO. […]
Contact Us
Product Details
Product Model: 65-9005-58
Product Brand: NITTO KOHKI CO., LTD.
Features
- For low pressure.
- Attaches hose without hose band.
- Comes with spring nuts to prevent hose breakage.
- To attach to the hose, simply insert the nipple and tighten the nut.
- Since the outer peripheral surface of the hose is tightened, it has a structure that prevents the hose from coming off and the fluid from flowing out.
- Compatibility: Can be connected to "High Coupler" models 10, 17, 20, 30 and 40. Can be connected to products of the "High Coupler" series (except 400, 600, and 800 models) and the "Nat Coupler" series.
Spec
- Opposing Hose Size (mm): Φ8.5 x Φ12.5
- Mass (g): 116
- L(mm):137.5
- A(mm):90
- ΦD(mm):26.5
- ΦB(mm):7.5
- H (mm): Hex 19
- T (mm): Hex 22
- Valve Structure: One Way Opening/Closing Type
- Applied Fluid: Air
- Body Material: Steel (Chrome Plated)
- Maximum Working Pressure (MPa{kgf/cm2}): 1.5{15}
- Pressure Capacity (MPa{kgf/cm2}): 2.0{20}
- Seal Material: Nitrile Rubber
- display symbols: NBR
- Operating Temperature Range (°C): -20 to +60
- Remarks: Standard Material
- Recomm***ed maximum tightening torque range (N · m{kgf · cm}): 7~8{71~82}
- Type: Socket
