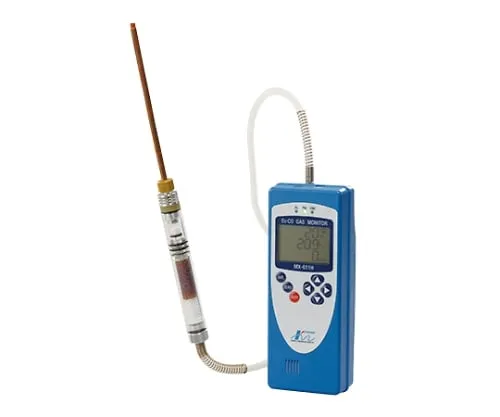

61-9735-21 Portable Combustion Control Tester (O2, CO) MX-611H
Product Description
Product Model: 61-9735-21Product Brand: KITAGAWA, KOMYO […]
Contact Us
Product Details
Product Model: 61-9735-21
Product Brand: KITAGAWA, KOMYO RIKAGAKU KOGYO K. K.
Features
- * Please let us know the address on the certificate.
- To easily check combustion efficiency and realize more effective energy saving
- 1. Measurement of oxygen and carbon monoxide in combustion exhaust gas.
- 2. Large LCD display for high gas concentration, easy to read.
- 3. With flow trouble function.
- 4. Convenient carrying with probe storage case.
Spec
- Gas sampling method: Suction type
- Measurement target gas: Oxygen (O2)/Carbon monoxide (CO)/Exhaust gas temperature (optional)
- Measurement principle: Oxygen (O2)/Galvanic battery type, Carbon monoxide (CO)/controlled potential electrolysis type, Exhaust gas temperature (optional)/thermocouple (K type)
- Measurement range: Oxygen (O2)/0.0 - 50.0vol%, Carbon monoxide (CO)/ 0 - 5000ppm, Exhaust gas temperature (optional)/0 - 750℃
- Minimum display digit: Oxygen (O2)/0.1vol%, Carbon monoxide (CO)/1ppm, Exhaust gas temperature (optional)/1℃
- Indication accuracy: Oxygen (O2)/0.0 - 25.0vol%: ±0.5vol% 25.1vol% or more: ±3.0vol%, Carbon monoxide (CO)/ 0 - 200ppm, ±20ppm, 201ppm or more: ±10% of instruction value, Exhaust gas temperature (optional)/ ±5℃
- Concentration display: Liquid crystal, digital
- Alarm method: LED lamp, LCD display, Buzzer
- Alarm settings: Instantaneous value measurement at the factory: ALM1 alarm cancellation, ALM2 alarm cancellation, average measurement alarm at the factory: ALM3 alarm cancellation
- Response time: O2: 90% response, 15 seconds or less CO: 90% response, 15 seconds or less
- Power supply: AA alkaline dry cell (LR6) 3 pieces
- Continuous *** time: Approximately 20 hours
- Operating temperature range: - 10 - 40℃ (Humidity: 30 - 85%RH, Non-condensing)
- Dimensions: 78 (W) x 200 (H) x 50 (D) mm
- Body mass: 550g (including cell)
- Accessories: Sampling probe, Dust filter, Soft case
