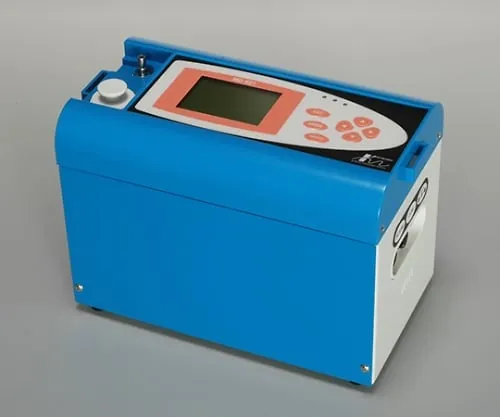

61-9735-09 Multi-Gas Measuring Instrument (O2, Combustible Gas, H2S) MD-801
Product Description
Product Model: 61-9735-09Product Brand: KITAGAWA, KOMYO […]
Contact Us
Product Details
Product Model: 61-9735-09
Product Brand: KITAGAWA, KOMYO RIKAGAKU KOGYO K. K.
Features
- * Please let us know the address on the certificate.
- The measurement of multiple gases is also necessary for disaster prevention and safety management, and is often required by laws and regulations such as the Industrial Safety and Health Act. It is a highly reliable product that has developed a composite measuring instrument that can measure multiple gases simultaneously by one device, and has an optimal sensor set for each target gas. It is a compact and robustly designed measuring instrument that is easy to carry with excellent operability and various combinations of sensor configurations based on the environment and application.
- It is a measuring instrument to prevent accidents in places where oxygen concentration in air is likely to be oxygen deficient and at the same time flammable gases such as methane gas and hydrogen sulfide are likely to be generated.
- Realized 3 roles and efficient safety management with 1.1 units.
- 2. The three components were measured simultaneously at acid sites and work sites.
- 3. A digital display unit and backlight function make it easy to read the density display, battery change, sensor abnormality and failure alarm in a wide manner.
- 4. Compact and robust design.
- 5. Battery capacity check, automatic calibration span calibration of oxygen sensor and zero adjustment of flammable gas sensor and hydrogen sulfide sensor are performed when the power is turned on.
- 6. The data logger function allows you to check tr***s on the screen.
- 7.2 Power supply system (dry battery, AC100V)
- 8. Continuous operation for 35 hours with dry battery (No alarm, no backlight)
- 9. Suction is stopped quickly when sucking water by built-in water sensor.
- 10. The gas introduction pipe is reeled in.
- 11. External alarms (optional) can be ***d to check alarms at a distance.
Spec
- Gas sampling method: Suction type
- Measurement target gas: Oxygen (O2)/Combustible gas/Hydrogen sulfide (H2S)
- Measurement principle: Oxygen (O2)/Galvanic battery type, Combustible gas/Catalytic combustion type, Hydrogen sulfide (H2S)/controlled-potential electrolysis type
- Measurement range: Oxygen (O2)/0.0 - 50.0vol%, Combustible gas/0 - 100% LEL, Hydrogen sulfide (H2S)/0.0 - 50.0ppm
- Minimum display digit: Oxygen (O2)/0.1vol%, Combustible gas/1% LEL, Hydrogen sulfide (H2S)/0.1ppm
- Indication accuracy: Oxygen (O2)/0.0 - 25.0vol%: ±0.5vol% 25.1vol% or more: ±3.0vol%, Combustible gas/±10% LEL, Hydrogen sulfide (H2S)/0 - 30.0ppm: ±1.5ppm, 30.1ppm or more: ±3.0ppm
- Concentration display: Liquid crystal, digital
- Alarm concentration: Oxygen (O2)/18.0vol% or less, Combustible gas/20% LEL, Hydrogen sulfide (H2S)/10.0ppm
- Alarm method: LED lamp, LCD display, Buzzer
- Response time: 90% response, 25 seconds or less (not include gas introduction tube in this regard)
- Power supply: D alkaline dry cell 4 pieces/100VAC ( adapter)
- Continuous *** time: When using alkaline dry cell: Approximately 35 hours
- Operating temperature range: - 10 - 40℃ (Humidity: 30 - 85%RH, Non-condensing)
- Dimensions: 230 (W) x 165 (H) x 130 (D) mm
- Body mass: Approximately 2.8kg (including cell and sensor)
- Accessories: Gas sampling tube with float type collection Instrument (8m), Case
