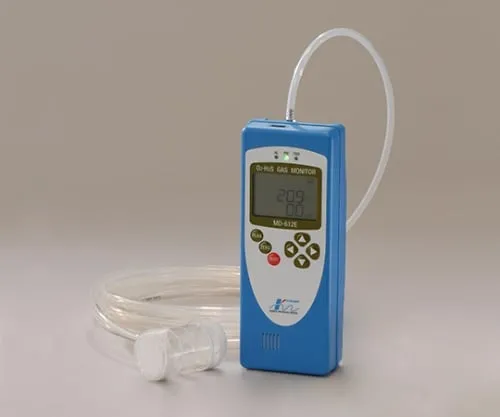

61-9735-07 Portable O2 And H2S Monitor  MD-612E
toner

61-9735-07 Portable O2 And H2S Monitor  MD-612E

model: 61-9735-07
brand: KITAGAWA, KOMYO RIKAGAKU KOGYO K. K.
category: toner

Product Description

Product Model: 61-9735-07Product Brand: KITAGAWA, KOMYO […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-9735-07
Product Brand: KITAGAWA, KOMYO RIKAGAKU KOGYO K. K.

Features

  • * Please let us know the address on the certificate.
  • It is a measuring instrument for measuring oxygen concentration to prevent acid loss accident and hydrogen sulfide concentration in air to prevent poisoning accident. In addition, hydrogen sulfide generated by sludge and organic matter decay and hydrogen sulfide generated by volcanoes and hot spring sites is detected in sewers, human waste treatment, pulp mills, and cleaning plants, and an alarm is sent out to alert the public of danger. In addition, it also detects the oxygen concentration at the same time to signal the danger of acid shortage.
  • 1. EX Explosion-Proof Passed Product (Exia II CT4X TC No. 19531)
  • 2. Japan Maritime Association (NK) Type Test Passed Product
  • 3. Loud alarm sound (90dB or more/10 cm) is ***d to signal a gas alarm or trouble.
  • 4. The bright LED indicator flashes to indicate that the unit is operating (green), when an alarm is issued (red), or has failed (orange).
  • 5. The screen is easy to see now using a large LCD display.
  • 6. The response time is faster beca*** the suction force of the pump is strong.
  • 7. When the power is ON, the battery capacity display and sensor check are fully automatic.
  • 8. Digital display of various messages such as intensity display, battery change, sensor malfunction, etc. and lighting function.
  • 9. Peak hold function is provided.
  • 10. Remote measurement possible * Optionally, a gas sampling pipe with a floating-type collector of 5 m to 30 m and a gas sampling pipe with a probe of 2.4 m can be ***d (Standard accessory: Gas sampling pipe with a floating-type collector of 5 m)

Spec

  • Gas sampling method: Suction type (about 0.6L/min sampling hose 5m loaded)
  • Measurement target gas: Oxygen (O2)/Hydrogen sulfide (H2S)
  • Measurement principle: Oxygen (O2)/Galvanic battery type, Hydrogen sulfide (H2S)/controlled-potential electrolysis type
  • Measurement range: Oxygen (O2)/0.0 - 50.0vol%, Hydrogen sulfide (H2S)/0.0 - 50.0ppm
  • Minimum display digit: Oxygen (O2)/0.1vol%, Hydrogen sulfide (H2S)/0.1ppm
  • Indication accuracy: Oxygen (O2)/0.0 - 25.0vol%: ±0.5vol% 25.1vol% or more: ±3.0vol%, Hydrogen sulfide (H2S)/0 - 30.0ppm: ±1.5ppm, 30.1ppm or more: ±3.0ppm
  • Concentration display: Liquid crystal, digital
  • Alarm method: LED lamp, LCD display, Buzzer
  • Alarm settings: O2: 18.0vol% H2S: ALM1 10.0ppm, ALM2 20.0ppm
  • Explosion-protection: ExiaIICT4X (No. TC19531)
  • Response time: O2: 90% response, 15 seconds or less H2S: 90% response, 25 seconds or less (sampling gas suction inlet, at 20℃)
  • Operation pressure range: 80 - 110kPa
  • Power supply: AA alkaline dry cell (LR6) 3 pieces
  • Continuous *** time: Approx 16 hours (with no alarm)
  • Operating temperature range: - 10 - 40℃ (Humidity: 30 - 85%RH, Non-condensing)
  • Dimensions: 78 (W) x 200 (H) x 50 (D) mm
  • Body mass: Approximately 550g (including cell)
  • Accessories: Sampling hose with float (5m), Leather Case, Carrying case
