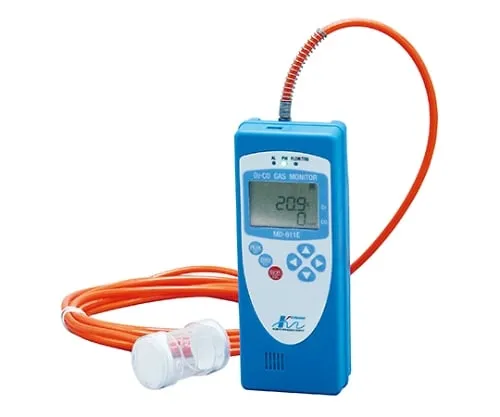

61-9735-05 Portable O2 And CO Monitor MD-611E
Product Description
Product Model: 61-9735-05Product Brand: KITAGAWA, KOMYO […]
Contact Us
Product Details
Product Model: 61-9735-05
Product Brand: KITAGAWA, KOMYO RIKAGAKU KOGYO K. K.
Features
- * Please let us know the address on the certificate.
- It is a measuring instrument for measuring oxygen concentration to prevent acid loss accidents and carbon monoxide concentration in air to prevent poisoning accidents. It detects carbon monoxide generated by incomplete combustion at work sites of steel mills and refineries, in civil engineering, in the pit of construction sites, and in generators installed in underdrains, etc., and s***s out an alarm to notify of danger. In addition, it detects the oxygen concentration at the same time to inform the danger of acid shortage.
- 1. EX Explosion-Proof Passed Product (Exia II CT4X TC No. 19531)
- 2. Use a loud alarm (90dB or more/10 cm) to s*** out a gas alarm or report trouble.
- 3. The bright LED indicator flashes to indicate that the unit is operating (green), when an alarm is issued (red), or has failed (orange).
- 4. The screen is easy to see now using a large LCD display.
- 5. The response time is faster beca*** the suction force of the pump is strong.
- 6. When the power is ON, the battery capacity display and sensor check are fully automatic.
- 7. Digital display of various messages such as intensity display, battery change, sensor malfunction, etc. and lighting function.
- 8. Peak hold function is provided.
- 9. Remote measurement is possible
- * Optionally, a gas sampling pipe with a floater type collector of 5 m to 30 m and a gas sampling pipe with a probe of 2.4 m can be ***d (Standard accessory: Gas sampling pipe with a floater type collector of 5 m)
Spec
- Gas sampling method: Suction type (about 0.6L/min, Standard sampling hose 5m loaded)
- Measurement target gas: Oxygen (O2)/Carbon monoxide (CO)
- Measurement principle: Oxygen (O2)/Galvanic battery type, Carbon monoxide (CO)/controlled potential electrolysis type
- Measurement range: Oxygen (O2)/0.0 - 50.0vol%, Carbon monoxide (CO)/0 - 500ppm
- Minimum display digit: Oxygen (O2)/0.1vol%, Carbon monoxide (CO)/1ppm
- Indication accuracy: Oxygen (O2)/0.0 - 25.0vol%: ±0.5vol% 25.1vol% or more: ±3.0vol%, Carbon monoxide (CO)/100ppm or less: ±10ppm, 100ppm or more: ±10% of the indicated value
- Concentration display: Liquid crystal, digital
- Alarm method: LED lamp, LCD display, Buzzer
- Alarm settings: O2: 18.0vol%, CO: ALM1 50ppm, ALM2 100ppm
- Explosion-protection: ExiaIICT4X (No. TC19531)
- Response time: O2: 90% response, 15 seconds or less CO: 90% response, 25 seconds or less (sampling gas suction inlet, at 20℃)
- Operation pressure range: 80 - 110kPa
- Power supply: AA alkaline dry cell (LR6) 3 pieces
- Continuous *** time: Approx 16 hours (with no alarm)
- Operating temperature range: - 10 - 40℃ (Humidity: 30 - 85%RH, Non-condensing)
- Dimensions: 78 (W) x 200 (H) x 50 (D) mm
- Body mass: Approximately 550g (including Cell)
- Accessories: Sampling hose with float (5m), Leather Case, Carrying case
