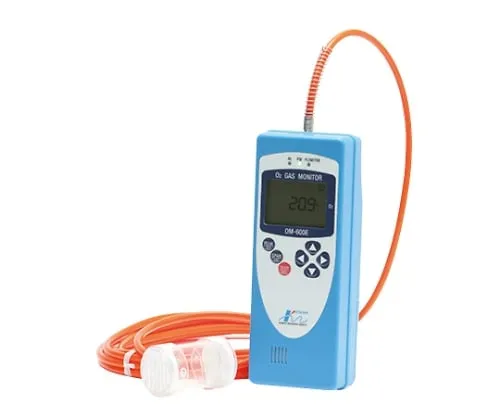

61-9735-03 Portable O2 Monitor OM-600E
Product Description
Product Model: 61-9735-03Product Brand: KITAGAWA, KOMYO […]
Contact Us
Product Details
Product Model: 61-9735-03
Product Brand: KITAGAWA, KOMYO RIKAGAKU KOGYO K. K.
Features
- * Please let us know the address on the certificate.
- 1. EX Explosion-Proof Standard Accepted Product (Exia II CT4X TC No. 19531)
- 2. Japan Maritime Association (NK) Type Test Accepted Product
- 3. Suction Type with Built-in Pump
- 4. Battery Capacity, Battery Display, Sensor Check, Span Adjustment Fully Auto with Power On.
- 5. Digital display and lighting function are provided for various messages such as density display, battery change, sensor abnormality, etc.
- 8. Peak hold function is provided.
- 9. Ideal for measuring oxygen concentration in places where sampling is difficult or in containers.
- 10. Remote measurement possible * Optionally, a gas collection pipe with a floating-type collector of 5 m to 30 m can be ***d (Standard accessory: Gas collection pipe with probe of 2.4 m)
Spec
- Gas sampling method: Suction type (about 0.6L/min, Sampling hose 5m loaded)
- Measurement target gas: Oxygen (O2)
- Measurement principle: Galvanic battery type
- Measurement range: 0.0 - 50.0vol%
- Minimum display digit: 0.1vol%
- Indication accuracy: 0.0 - 25.0vol%: +/-0.5vol%, 25.1vol% or more: +/-3.0vol%
- Concentration display: Liquid crystal, digital
- Alarm concentration: 18.0vol%
- Alarm method: LED lamp, LCD display, Buzzer
- Explosion-protection: ExiaIICT4X (No. TC19531)
- Response time: 90% response, 15 seconds or less (not include gas introduction tube in this regard) at 20℃)
- Alarm accuracy: ±0.5vol% to alarm setting value 18.0vol%
- Power supply: AA alkaline dry cell (LR6) 3 pieces
- Continuous *** time: Approx 16 hours (with no alarm)
- Operating temperature range: - 10 - 40℃ (Humidity: 30 - 85%RH, Non-condensing)
- Dimensions: 78 (W) x 200 (H) x 50 (D) mm
- Body mass: Approx 550g (including cell, Body only)
- Accessories: Sampling hose with float (5m), Leather Case, Carrying case
- Operation pressure range: 80 - 110kPa
