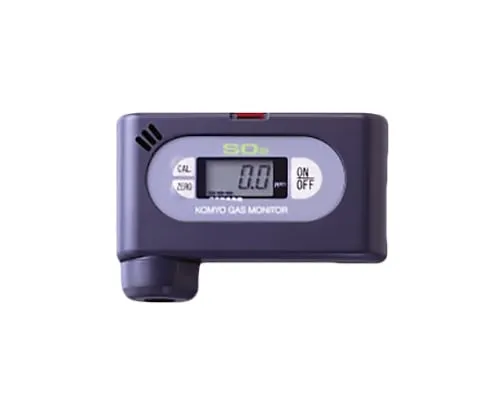

61-9734-92 Pocketable SO2 Monitor TPA-5300P
Product Description
Product Model: 61-9734-92Product Brand: KITAGAWA, KOMYO […]
Contact Us
Product Details
Product Model: 61-9734-92
Product Brand: KITAGAWA, KOMYO RIKAGAKU KOGYO K. K.
Features
- * Please let us know the address on the certificate.
- Working in volcanic areas is hazardous beca*** of exposure to sulfur dioxide. The Kitagawa-type sulfur dioxide monitor TPA-5300P is small and lightweight, so it is suitable for *** during work. At a concentration of 2ppm or more, alarm sounds and vibration alarms (The alarm may not be heard in places with noise, which may delay the perception of danger.) can be ***d to alert the ***r of danger in advance, to encourage evacuation, and to detect only sulfur dioxide ca***d by gas poisoning. The power supply of this device is a dry battery (the battery indicator is always displayed) and can be easily replaced on site even if the battery is exhausted due to an alarm.
- 1. It is small, lightweight and weighs 100 g.
- 2. There are two types of alarm: lamp and buzzer. 3. The alarm has a two-stage alarm function. 4. The alarm concentration can be set arbitrarily.
- 5. With a digital display unit and lighting function that makes it easy to view density display, battery change, sensor abnormality, etc. in a wide manner.
- 6. The power supply is a AAA alkaline type battery that can be ***d for a long time with low power consumption. Can be ***d continuously for 600 hours for about 3 months.
- 7. Zero adjustment and span calibration by one-touch operation.
- 8. When the power is ON, the battery capacity is displayed and the sensor is checked.
- 9. Peak hold function is provided.
- 10. The downward-facing sensor prevents dust and rainwater from sticking to the structure.
- 11. Optionally, sensor extension cords (5 m to 30 m) and adapters (extension cable kids) allow remote measurement.
Spec
- Gas sampling method: Diffusion type
- Measurement target gas: Sulfur dioxide (SO2)
- Measurement principle: Controlled-potential electrolysis type
- Measurement range: 0.0 - 50.0ppm
- Minimum display digit: 0.1ppm
- Indication accuracy: 0.0 - 5.0ppm: ±0.5ppm, 5.1ppm or more: ±10% of the indicated value
- Concentration display: Liquid crystal, digital
- Alarm concentration: LOW: 2ppm/HIGH: 15ppm (2 level alarm)
- Alarm method: LED lamp, LCD display, Buzzer
- Response time: 62.5% response, 30 seconds or less
- Major functions: Display lighting, Battery remaining amount display, Automatic calibration
- Power supply: AAA alkaline dry cell 2 pieces
- Continuous *** time: Approximately 600 hours
- Operating temperature range: - 10 - 45℃ (humidity: 30 - 85%RH, Non-condensing)
- Dimensions: 100 (W) x 54 (H) x 23 (D) mm (excluding the sensor unit)
- Body mass: Approximately 100g (including cell)
- Accessories: Soft case
