Electronic/Electrical Parts and Controll Equipments

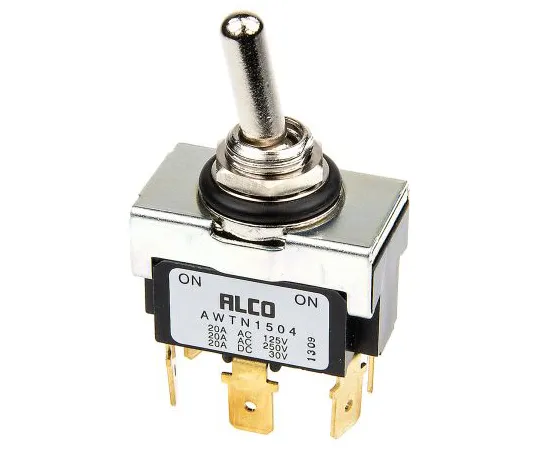

63-4602-41 Toggle Switch DPDT On-On AWTN1504
model:
63-4602-41
brand:
TE Connectivity
Product Description
Product Model: 63-4602-41Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4602-41
Product Brand: TE Connectivity
Features
- UL, CSA
- Waterproof IP67
- Toggle switch with silver plated contacts. Seal Structure to Prevent Dust and Liquid Entry 250 inch (1/4 inch) Receptacle Connection or Soldering Connection The '(on)' in the bias action represents the momentary on position.
- Brass Actuator, glass fiber polyester case
Spec
- Number of pieces: 1
- Contact Configuration: DPDT
- How the switch works: On-On
- Contact current rating: 20 A @ 250 V ac
- Mounting Type: Panel Mount
- Terminal Type: Tabs
- IP Rating: IP 67
- Actuator length: 17.5 mm
- Actuator Material: Brass
- Contact resistance: 10 m.OMEGA.
- Operating temperature Min: -20 degrees C
- RoHS compliance status: Compliance
- Securities Code: 317 -437
