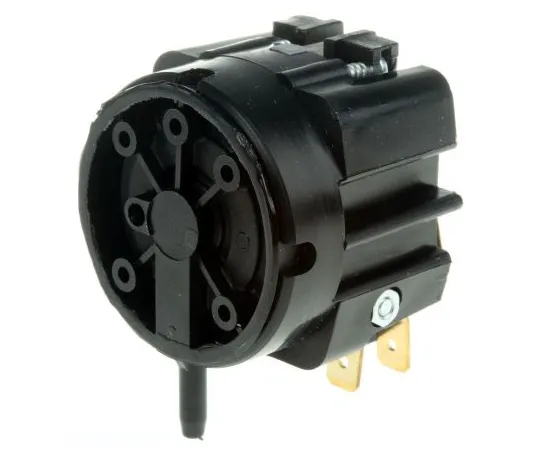

63-4602-40 RS PRO 686 Series Air Switch, Surface Mounted 317-320
Product Description
Product Model: 63-4602-40Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4602-40
Product Brand: RS PRO
Features
- Be sure to *** mounting screws with a length of 6 mm or less. Using anything longer than 6 mm can ca*** holes in the bellows.
- Air-Actuated Switch, Two-Pole Element, Surface-Mounted
- The momentary switch unit is equipped with two SPDT microswitch contacts, one of which activates after the other. Further pressure must be applied to the actuator for the second switch to operate The alternate switch unit is equipped with two SPDT microswitch contacts operating simultaneously Each switch is rated 15 A, 250 V ac.
- Mounting with 4 No. 4 self-tapping screws Operating pressure: 1.2 psi Maximum pressure: 15 psi
Spec
- Manufacturer Series:686
- Mounting Type:Surface
- Operation:NO/NC
- CODE No.:317-320
