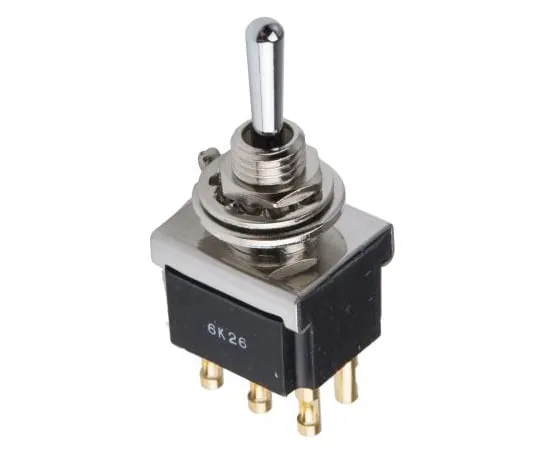

63-4602-31 Toggle Switch DPDT On-Off-On FTP0904
model:
63-4602-31
brand:
TE Connectivity
Product Description
Product Model: 63-4602-31Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4602-31
Product Brand: TE Connectivity
Features
- CSA • Be careful not to overheat the switch assembly during soldering.
- The '(on)' of the bias switch represents the 'on' position of the momentum.
- Toggle Switch, Miniature, Professional
- Slow Make/Break Operation Chrome Plating Lever Solder Bucket Terminal Waterproof Cover (Part No. < 321-212') 321-212 Available (see Accessories) Part No. < 317-077') 317-077/, < 317-106') 317-106/, < 317-112') 317-112/, < 317-128') 317-128/, < 317-083') 317-083/(Uses gold contacts) Uses silver contacts Maximum load 0.4VA Polyester case with glass fiber
Spec
- Number of pieces: 1
- Contact Configuration: DPDT
- Switch Behavior: On-Off-On
- Contact current rating: 4 A @ 30 V dc
- Mounting Type: Panel Mount
- Terminal type: through hole
- Panel cutout diameter: 6.2 mm
- Actuator length: 10.5 mm
- Actuator material: chrome-plated brass
- Contact resistance: 10 m.OMEGA.
- Contact Material: Pure Silver
- RoHS compliance status: Compliance
- Securities Code: 317 - 011
