62-2097-11 Double Tube Separable Reaction Vessel with Media Baffle, Hose Port Type, with Valve Seat 3010-0585A-H
Product Description
Product Model: 62-2097-11Product Brand: ASAHI SEISAKUSH […]
Contact Us
Product Details
Product Model: 62-2097-11
Product Brand: ASAHI SEISAKUSHO CO., LTD.
Features
- Contains hose connectors (Code No. 3964).
- Flash valve (Code No. 3960) is not included.
- Clamp slip stop is attached to the flange. (* Clamp (Code No. 3966) is not included.)
- The heat exchange rate of the separator reactor with media baffle is about three times higher than that of our company conventional products.

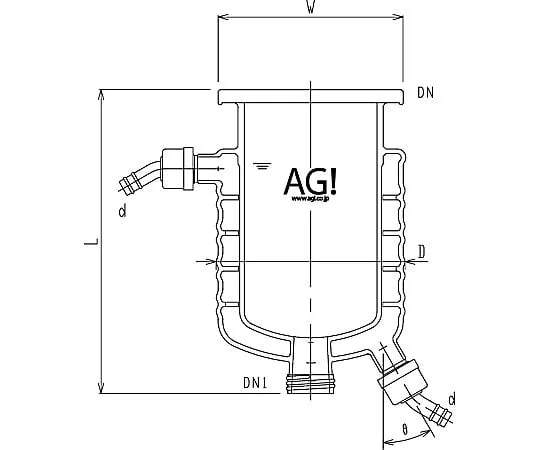

Spec
- Capacity (mL): 500
- DN:85
- W(φ):120
- D(φ):123
- L:185
- DN1:SQG-29/42
- d(φ):10
- θ(°):30
- Heat Transfer Area (m2): 0.03
