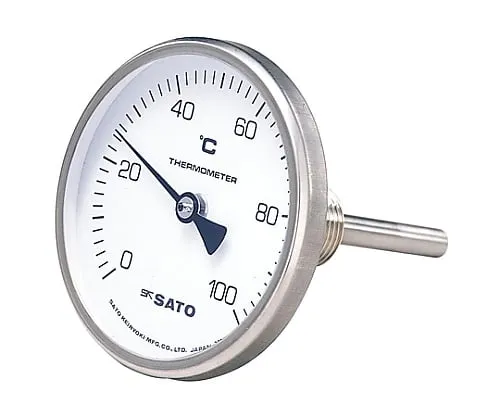

61-0096-53 Bimetal Thermometer 2110-20 0 - 100℃ 50mm BM-T-75S
Product Description
Product Model: 61-0096-53Product Brand: Sato Keiryoki M […]
Contact Us
Product Details
Product Model: 61-0096-53
Product Brand: Sato Keiryoki Mfg. Co., Ltd.
Features
- All the metal parts on the outer surface are made of SUS304. This is a robust industrial thermometer. The shape is T-type (backing type). This is a robust industrial thermometer that does not require a power source and ***s bimetal expansion.
Spec
- Model number: 2110-20
- Measurement range: 0 - 100℃
- 1 scale: 2℃
- Dimension under screw: 50mm
- Case outer diameter: φ80
- Dial diameter: φ75
- Case material: SUS304
- Cover material: SUS304
- Transparent plate material: Glass
- Temperature sensing element diameter: φ8
- Temperature sensing element material: Stainless Steel (SUS304)
- Standard mounting screw: PT1/2
- Screw part withstanding pressure: 2Kgf/cm2
