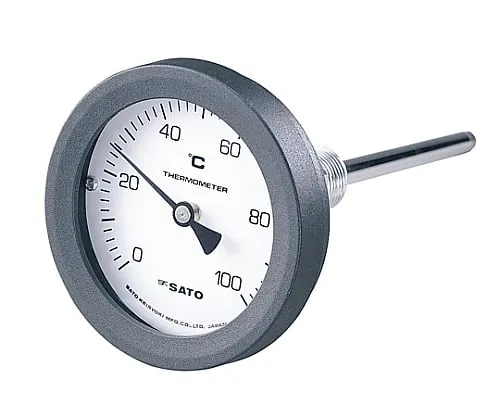

61-0096-35 Bimetal Thermometer 2089-00 0 - 100℃ 50mm BM-T-75P
Product Description
Product Model: 61-0096-35Product Brand: Sato Keiryoki M […]
Contact Us
Product Details
Product Model: 61-0096-35
Product Brand: Sato Keiryoki Mfg. Co., Ltd.
Features
- This bimetallic thermometer achieves cost reduction by making the case of polyamide resin and the temperature sensitive parts and screws made of brass.
- Industrial thermometer using bimetallic expansion without power supply * * Be sure to *** a protective tube (optional) in the following cases. If the material to be measured is high pressure (5 kg/cm or more) or corrosive (however, the material SUS304 may not be suitable for corrosion resistance due to the environment).
Spec
- Model number: 2089-00
- Measurement range: 0 - 100℃
- 1 scale: 2℃
- Dimension under screw: 50mm
- Case outer diameter: φ87
- Dial diameter: φ75
- Temperature sensing element diameter: φ8
- Mounting screw: R1/2(PT1/2)
