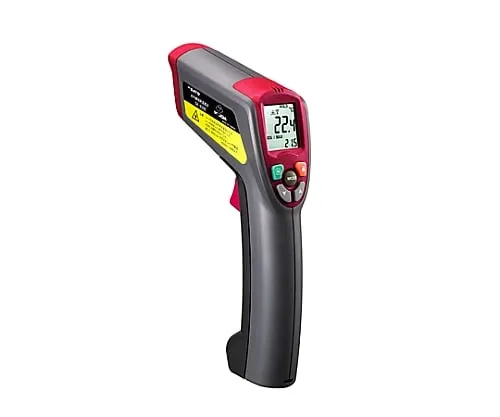

61-9438-86 Infrared Radiation Thermometer Calibration Report And Calibration Certificate SK-8300
toner

61-9438-86 Infrared Radiation Thermometer Calibration Report And Calibration Certificate SK-8300

model: 61-9438-86
brand: Sato Keiryoki Mfg. Co., Ltd.
category: toner

Product Description

Product Model: 61-9438-86Product Brand: Sato Keiryoki M […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-9438-86
Product Brand: Sato Keiryoki Mfg. Co., Ltd.

Features

  • * Please let us know the address on the certificate.
  • Surface temperature can be measured quickly. • High temperature range can also be measured. Covers a wide temperature range from -30°C to 1550°C. • Can be measured with one hand using a gun-type grip. • 1 point with a laser marker that lets you see the measurement point at a glance. • With upper and lower warning functions. Alarm sound is provided. • Data memory is included. Up to 10 data can be stored. • Auto measurement is included. Continuous measurement is possible with the measurement trigger released.
  • Comes with a LCD backlight function that allows you to read the temperature reading even in low light. The camera turns off automatically to prevent battery drain ca***d by forgetting to turn off the power. Measurements can be performed while fixed to a tripod
  • Consumer Product Safety Law Portable Laser Application Equipment with PSC mark. This unit is a Class 2 laser product and has a PSC mark.

Spec

  • Calibration point: Temperature 50, 200, 400℃ (emissivity ε=0.95)
  • Contents of calibration documents: Calibration report, calibration certificate
  • Measurement range: -30 - 1550℃
  • Accuracy: +/- 3℃ (30 - 20.1℃), +/- 2℃ (20.0 - 100.0℃), +/- 2% Rdg (other than the left) (conditions) measurement environment temperature 23 +/- 5℃, Emissivity 0.95
  • Distance factor (D: S) is approx 50: 1 (D: Measurement distance, S: Measurement region diameter), Emissivity is variable by 0.01 units.
  • Maximum temperature (mA x ), Minimum temperature (mIN), Average value (AVG), Temperature difference between measurement display function (ΔT)
  • Dimensions: (W) 51 x (H) 200 x (D) 166mm
  • Weight: Approx 280g (including dry cell)
