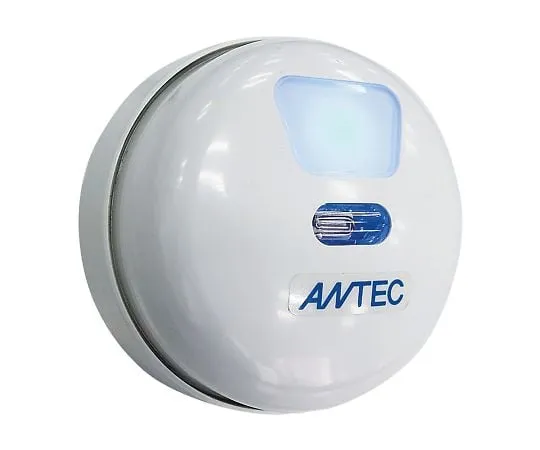

3-7609-01 Ultraviolet Ray Sensing Flame Sensor (For Outdoor And Indoor Use) SKH047M
model:
3-7609-01
category:
packagingfilmtapematerials
Product Description
Product Model: 3-7609-01 Features It senses even small […]
Contact Us
Product Details
Product Model: 3-7609-01
Features
- It senses even small flames instantly.
- A flame of about 2 cm can be detected from a distance of about 5 m in as little as 0.5 seconds.
- Its technology for separating sunlight from ultraviolet rays allows it to be ***d outdoors without losing performance.
Spec
- Size (mm): φ68 x 25
- Case material: ABS Plastic
- ultraviolet ray detection wavelength: 185 to 260 nm
- Detection angle range: upper and lower/120 °, Left/Right/120 °
- detection distance : about 5 m (At 2 cm flame)
- Detection timer: can be set in units of 1 second up to 0.5 seconds 1 to 31 seconds
- Alarm output: 1A relay contact (AC 125 V, 0.5 A, DC24V 1A) or open collector (5 VDC IC 200 mA)
- Power supply: : DC9 to 24 V
- Wires: 4 wires (power supply, 2 pieces, 2 pieces)
- Operating temperature range: 10 to + 60℃
- Weight: 75g
- rating Power Consumption : 200 mW or less (waiting time)
- Waterproof dust-proof: IP 64
