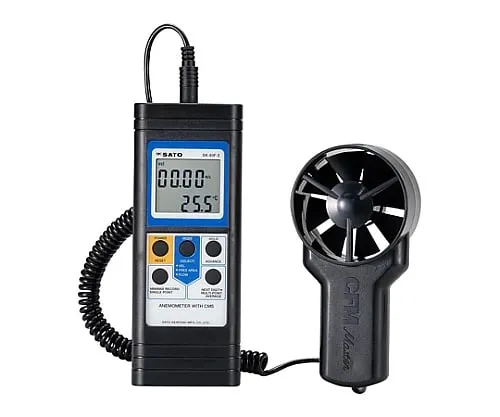

61-9438-62 Vane Anemometer Calibration Report And Calibration Certificate SK-93F-2
Product Description
Product Model: 61-9438-62Product Brand: Sato Keiryoki M […]
Contact Us
Product Details
Product Model: 61-9438-62
Product Brand: Sato Keiryoki Mfg. Co., Ltd.
Features
- * Please let us know the address on the certificate.
- You can measure wind speed, air volume, and temperature. • By inputting and setting the measurement cross section, the air volume value is calculated from the measured wind speed value and displayed.
- Displays the lowest, highest, and average values for wind speed, air volume, and temperature measurement. • Using the dedicated RS-232C cable (optional), you can import the measured values into your computer in real time, enabling real-time monitoring. (You need to create a communication program.) *The output is temperature and wind speed data. Air flow data is not output
- Storage: 8 Data
- Auto power off function included * The power will be turned off automatically if there is no key operation for about 15 minutes. Prevents battery drain ca***d by forgetting to turn off the power.
- Comes with a hard case for easy carrying and storage
Spec
- Calibration point: Temperature 23℃, Wind speed 5, 10m/s (room temperature)
- Contents of calibration documents: Calibration report, calibration certificate
- Measurement range: Wind speed: 0.70 - 25.00m/s, Air volume: 0.01 - 99.99m3/s, Temperature: -10.0 - 50.0℃
- Measurement accuracy: Wind speed +/- (5%Rdg + 0.5) m/s, Air volume wind speed measurement accuracy + calculation error, Temperature +/- 1.0℃
- Dimensions/mass: Body (W) 71 x (H) 181 x (D) 38mm, Vane diameter φ70mm, Cord approx 500mm approx 360g (including dry battery)
- Power supply: 9V dry battery 6F22 (006P) or AC adapter (option)
- Accessories: 9V6F22 (006P) 1 piece, Carrying case, Instruction manual:
- Option: AC adapter (No.7687-52), RS-232C connection cable (NO.7687-90)
